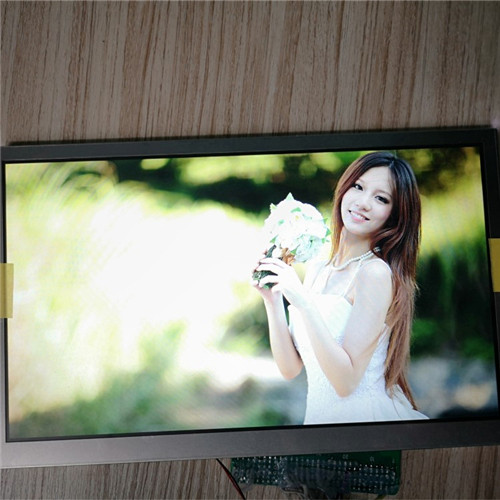

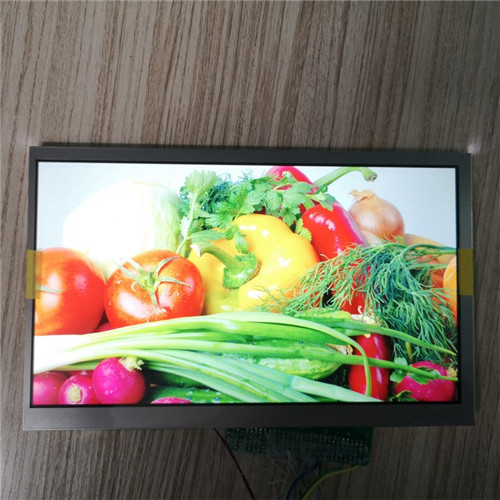

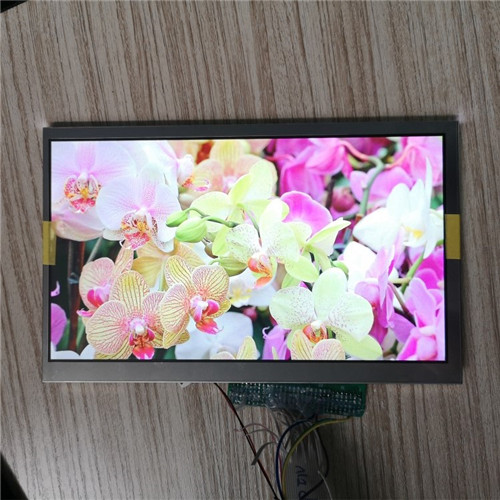

7.0 Inch Color TFT LCD Display

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

There are some application of LCD which are given below,

The LCDs are commonly used in all the digital wrist watches for displaying time.
The LCD (liquid crystal display) is used in aircraft cockpit displays.
It is used for displaying images used in digital cameras.
It is used in instruments panel where all the lab instruments uses LCD screens for display.
It is used as a display screen in calculators.
The television is main applications of LCD.
Mostly the computer monitor is made up of LCDs.
The LCDs are used in mobile screens.
It is also used in video players.

ITEM	Sandard value	Unit
Model Number	700015S0-CTP
size	7.0	Inch
LCD Type	Normally black	--
Drive element	TFT active matrix	--
Number of pixels	1024*3RGB(H)X600(V)	Dots
Pixel arrangement	RGB stripe	--
Pixel Pitch (W*H)		mm
Active area	154.21(H) * 85.92(V)	mm
CTP+LCM Mechanical Outline Size(WHT)	1651004.45	mm
LCM Mechanical Outline Size(WHT)	1651002.8	mm
Viewing direction	ALL O’CLOCK	-
LCM Driver IC	EK79001	-
LCM interface	LVDS Bit Interface	-
Lcm pin n count	40
Backlight current	160	ma
Backligh voltage	8.9-10	v
Touch screen structure	GFF
Touch Driver IC	FT5436	-
Touch Interface	I2C
operating temperature	-20+70	℃
storage temperature	-30+80	℃
Lumens degrees	300	Cd/㎡
