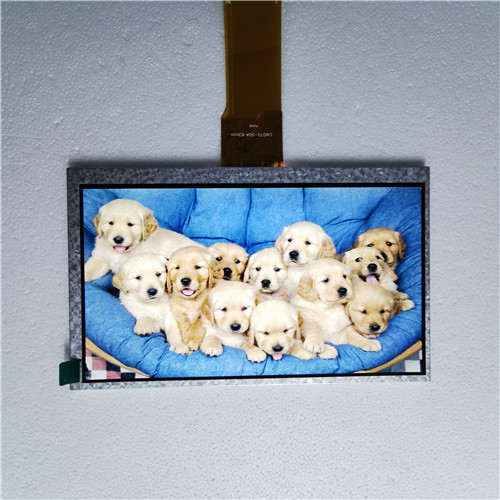

7.0 Inch TFT LCD Display

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

A thin-film transistor liquid crystal display (TFT LCD) is a type of liquid crystal display (LCD) that makes use of thin-film transistor technology in order to improve qualities such as contrast and addressability. TFT technology means that an individual transistor is used to drive each individual pixel, allowing for faster response times.
Model: 700008S0
Resolution: 1024*600
Viewing angle: IPS full viewing angle
Display color: 16.7M
Product features: high brightness, full viewing angle, wide temperature, high quality, etc.
Application fields: industrial control equipment, medical equipment, automotive electronics, human-machine interface, PDA expansion, smart home, home appliances, etc.

ITEM	Sandard value	Unit
Model Number	700008S0
size	7.0	Inch
LCD Type	Normally Black	--
Drive element	TFT active matrix	--
Number of pixels	1024*3RGB(H)X600(V)	Dots
Pixel arrangement	RGB stripe	--
Pixel Pitch (W*H)		mm
Active area	154.21(H) * 85.92(V)	mm
LCM Mechanical Outline Size(WHT)	1651002.8	mm
Viewing direction	ALL O’CLOCK	-
LCM Driver IC	EK79001	-
LCM interface	RGB 24 Bit Interface	-
Lcm pin n count	50
Backlight leds	24	pcs
Backlight current	160	ma
Backligh voltage	8.9-10	v
operating temperature	-20+70	℃
storage temperature	-30+80	℃
Lumens degrees	300	Cd/㎡
