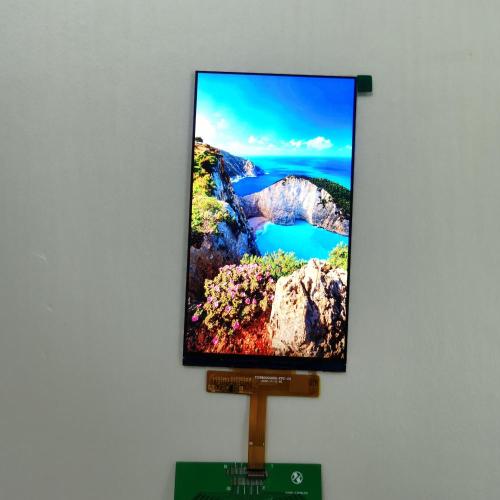

6.0 inch TFT LCD Module

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

A thin-film-transistor liquid-crystal display (TFT LCD) is a variant of a liquid-crystal display(LCD) that uses thin-film transistor (TFT) technology to improve image qualities such as addressability and contrast. Application: Television Sets, Computer monitors, Mobile Phone, Handheld Device, POS Device, Tablet Phones, Home Automation System, Navigation Systems, Personal Digital Assistance, Automotive Instrument Cluster, Infotainment System and similar products.
Model: 600005S0-LL
Resolution: 720*1280
Viewing angle: IPS
Display color: 16.7M
Product features: full viewing angle/HD/high brightness/narrow frame
Application fields: face recognition, temperature measurement equipment, mobile payment, industrial security, instrumentation, automotive electronics, medical equipment, smart home, Internet of Things, household appliances and other fields.

ITEM	Sandard value	Unit
Model Number	600005S0-LL
size	6.0	Inch
LCD Type	Normally black	--
Drive element	TFT active matrix	--
Number of pixels	720*3RGB(H)X1280(V)	Dots
Pixel arrangement	RGB stripe	--
Pixel Pitch (W*H)	0.10275(H) *0.10275 (V)	mm
Active area	73.98(H) * 131.52(V)	mm
LCM Mechanical Outline Size(WHT)	76.84139.461.62	mm
LCM+CTP Mechanical Outline Size(WHT)	83.8152.83.72	mm
Viewing direction	ALL O’CLOCK
LCM Driver IC	RM68200	-
LCM interface	MIPI Interface	-
Lcm pin n count	30
Backlight leds	16	pcs
Backlight current	40	ma
Backligh voltage	24	v
CTP Driver IC	FT5436
CTP interface	IIC
operating temperature	-20+70	℃
storage temperature	-30+80	℃
Lumens degrees	350	Cd/㎡
