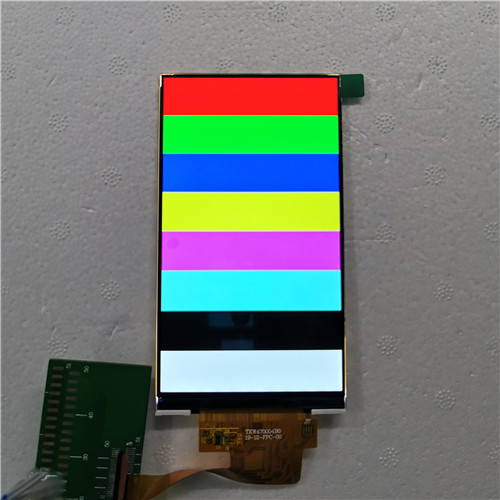

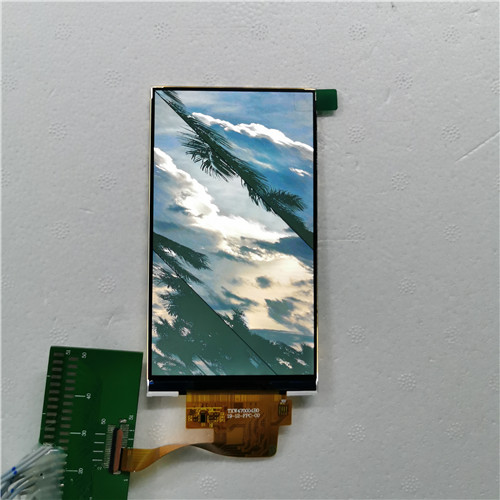

4.7 Inch IPS Display Screen

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

As a display device TFT stands for Thin Film Transistor and is used to enhance the operation and usefulness of LCD displays. An LCD is a fluidic display device that uses a crystalline filled liquid to manipulate a rear illumination polarized source by means of an electrostatic field between two thin transparent metal conductors such as indium tin oxide (ITO) in order to present an image to the viewer. This process can be used in both segmented or pixelated display devices but is found synonymous with color TFT displays.

Model: 470004B0
Resolution: 720*1280
Viewing angle: IPS
Display color: 16.7M
Product features: high brightness, full viewing angle, narrow frame, matching capacitive touch
Application fields: handheld PDA, mobile payment, face recognition, smart home, smart switch panel, advertising machine display, medical equipment, automotive electronics, industrial control equipment, Internet of Things, white goods and other fields

ITEM	Sandard value	Unit
Model Number	470004B0
size	4.7	Inch
LCD Type	Normally black	--
Drive element	TFT active matrix	--
Number of pixels	720*3RGB(H)X1280(V)	Dots
Pixel arrangement	RGB stripe	--
Pixel Pitch (W*H)	0.1155*0.1155	mm
Active area	58.1(H) * 103.3(V)	mm
LCM Mechanical Outline Size(WHT)	61.4112.61.56	mm
Viewing direction	ALL O’CLOCK	-
LCM Driver IC	JD9365Z	-
LCM interface	MIPI Interface	-
Lcm pin n count	25
Lumens degrees	400	Cd/㎡
Backlight leds	10	pcs
Backlight current	40	ma
Backligh voltage	15	v
operating temperature	-20+70	℃
storage temperature	-30+80	℃
