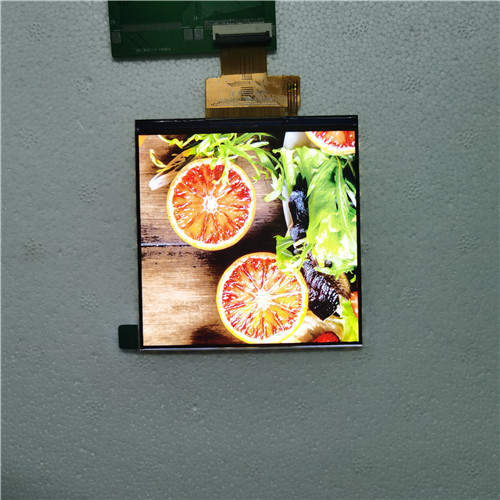

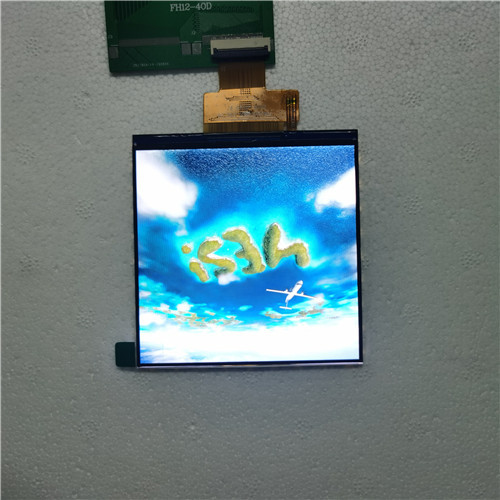

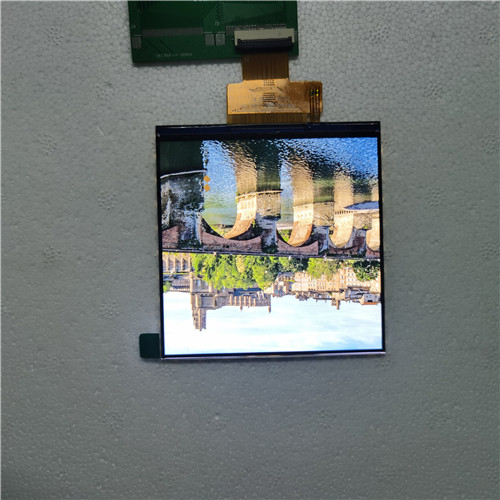

4.0 Inch TFT LCD Module

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

TFT was first used as a matrix location circuit to improve the optical valve characteristics of liquid crystal.For high-resolution display, the accurate control of object elements is realized through voltage adjustment in the range of 0-6v (its typical value is 0.2 to 4V), thus making it possible for LCD to achieve high-quality high-resolution display.Tft-lcd is the first flat panel display in human history to surpass CRT in display quality.Now people are starting to integrate the drive IC into the glass substrate, and the whole TFT will be more powerful than traditional large-scale semiconductor integrated circuits.
Low cost TFT advantage
The glass and plastic substrates fundamentally solve the cost problem of large-scale semiconductor integrated circuits and open up wide application space for large-scale semiconductor integrated circuits.

ITEM	Sandard value	Unit
LCD Type	Normally black	--
Drive element	TFT active matrix	--
Number of pixels	480*3RGB(H)X480(V)	Dots
Pixel arrangement	RGB stripe	--
Pixel Pitch (H*V)	0.1497(H) x0.1462(V)	mm
Active area	71.86(H) x 70.18(V)	mm
Viewing direction	ALL O’CLOCK	-
TFT Driver IC	ST7701S
TFT interface	2Lane MIPI interface	-
Approx. Weight	TBD	g
LCM Size(WHT)	74.83W) x 77.68(H) x2.19(T)	mm
Touch structure
Touch Driver IC
Touch Interface
