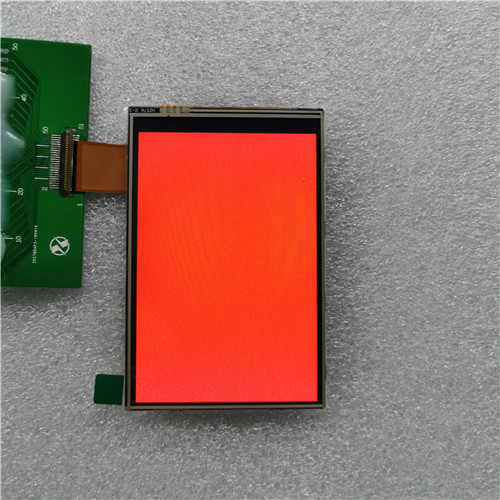

3.5 Inch TFT LCD Display

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

TFT is the abbreviation of "Thin Film Transistor", generally refers to thin film liquid crystal displays, but actually refers that thin film transistors (matrix)-can "actively" control each independent pixel on the screen, which is the origin of the so-called active matrix TFT.
So how exactly is the image produced? The basic principle is very simple: the TFT display screen is composed of many pixels that can emit light of any color, and the purpose can be achieved by controlling each pixel to display the corresponding color.

product manual:
Model: 350074C0
Resolution: 320*480
Viewing angle: IPS
Color: 262K
Structure: LCD+RTP
Features: high brightness, wide viewing angle, back light source upper and lower iron frame design, low power consumption, resistive touch, ESD direct contact: 8KV, air: 15KV
Application areas: automotive electronics, medical equipment, digital electronics, smart home, white goods, etc.

ITEM	Sandard value	Unit
Model Number	350074C0
size	3.5	Inch
LCD Type	Normally White	--
Drive element	TFT active matrix	--
Number of pixels	320*3RGB(H)X480(V)	Dots
Pixel arrangement	RGB stripe	--
Pixel Pitch (W*H)	0.153*0.153	mm
Active area	48.96(H) * 73.44(V)	mm
RTP+LCM Mechanical Outline Size(WHT)	54.5833.4	mm
LCM Mechanical Outline Size(WHT)	54.5832.2	mm
RTP Mechanical Outline Size(WHT)	54.2682.541.2	mm
Viewing direction	12 O’CLOCK	-
LCM Driver IC	ILI9488	-
LCM interface	RGB 18 BIT Interface	-
Lcm pin n count	45
Backlight leds	6	pcs
Backlight current	20	ma
Backligh voltage	18.6	v
operating temperature	-20+70	℃
storage temperature	-30+80	℃
Lumens degrees	350	Cd/㎡
