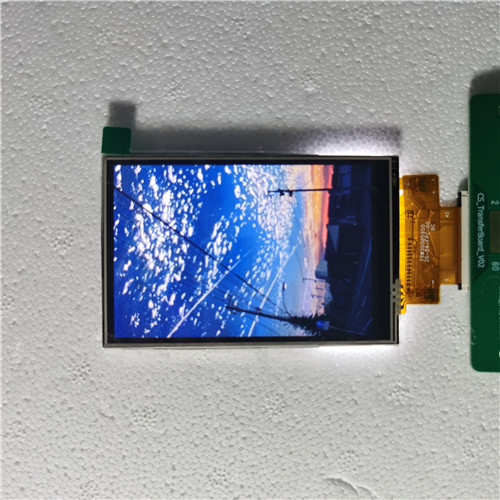

3.5 Inch Color TFT LCD Display Screens

TFT-LCD Display is developed as a further development is the active-matrix display the control of a matrix of thin-film transistors has been included. A liquid crystal display LCD or TFT-LCD Display is a screen whose function is direction of polarized light affect when a certain level of electrical voltage is applied.product manual:
Model: 350059S0-RTP
Resolution: 320*480
Viewing angle: 12 o'clock
Color: 65/262K
Structure: LCD+RTP
Features: high brightness, wide viewing angle, with resistive touch
Application areas: 3D desktop printers, automotive electronics, medical equipment, digital electronics, smart homes, home appliances, etc.

ITEM	Sandard value	Unit
Model Number	350059S0-RTP
size	3.5	Inch
LCD Type	Normally White	--
Drive element	TFT active matrix	--
Number of pixels	320*3RGB(H)X480(V)	Dots
Pixel arrangement	RGB stripe	--
Pixel Pitch (W*H)	0.153*0.153	mm
Active area	48.96(H) * 73.44(V)	mm
RTP+LCM Mechanical Outline Size(WHT)	54.8884.923.75	mm
Viewing direction	12 O’CLOCK	-
LCM Driver IC	ILI9488	-
LCM interface	MCU 16 BIT Interface	-
Lcm pin n count	40
Backlight leds	6	pcs
Backlight current	120	ma
Backligh voltage	3.2	v
operating temperature	-20+70	℃
storage temperature	-30+80	℃
Lumens degrees	350	Cd/㎡
