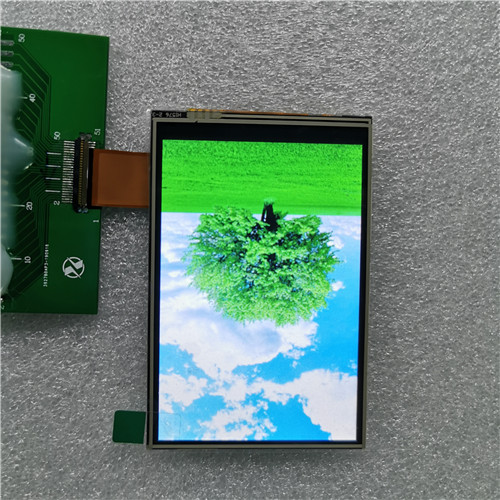

3.5 Inch Color TFT LCD Display Screens

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Thin Film Transistor (TFT) Screens
TFT is a type of LCD screen that has more complex electronics than an ordinary passive LCD.
It uses arrays of transistors to control backlighting of the screen actively.
These enable it to display graphics and animations much more clearly and quickly than an ordinary LCD and
can display moving graphics without ‘shadowing’.

product manual:
Model:350051C0-RTP
Resolution: 320*480
Viewing angle: IPS
Color: 262K
Structure: LCD+RTP
Features: high brightness, wide viewing angle, back light source upper and lower iron frame design, low power consumption, resistive touch, ESD direct contact: 8KV, air: 15KV
Application areas: automotive electronics, medical equipment, digital electronics, smart home, white goods, etc.

ITEM	Sandard value	Unit
Model Number	350051C0-RTP
size	3.5	Inch
LCD Type	Normally White	--
Drive element	TFT active matrix	--
Number of pixels	320*3RGB(H)X480(V)	Dots
Pixel arrangement	RGB stripe	--
Pixel Pitch (W*H)	0.153*0.153	mm
Active area	48.96(H) * 73.44(V)	mm
RTP+LCM Mechanical Outline Size(WHT)	54.5833.4	mm
LCM Mechanical Outline Size(WHT)	54.5832.2	mm
RTP Mechanical Outline Size(WHT)	54.2682.541.2	mm
Viewing direction	12 O’CLOCK	-
LCM Driver IC	ILI9488	-
LCM interface	RGB 18 BIT Interface	-
Lcm pin n count	45
Backlight leds	6	pcs
Backlight current	20	ma
Backligh voltage	18.6	v
operating temperature	-20+70	℃
storage temperature	-30+80	℃
Lumens degrees	350	Cd/㎡
