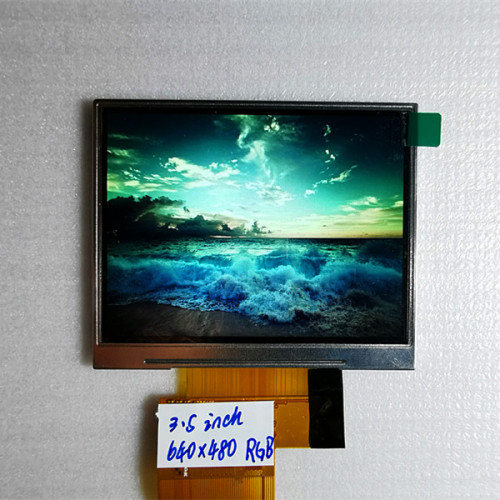

3.5 Inch Colorful TFT LCD Screen Display

3.5 Inch Colorful TFT LCD Screen Display

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

The display sets the electron, the communication and the information processing technology in one body, is considered as the electron industry after the 20th century microelectron, the computer another important development opportunity.Product parameter description
Model: 350049C0
Resolution: 640*480
Viewing angle: IPS
Display color: 16.7M
Product features: high resolution, high brightness, full viewing angle, touch screen and display screen the same size, beautiful and versatile
Application fields: industrial control equipment, game consoles, medical equipment, serial port display modules, handheld PDAs, automotive electronics, Internet of Things, white goods, etc.

ITEM	Sandard value	Unit
Model Number	350049C0
size	3.5	Inch
LCD Type	Normally Black	--
Drive element	TFT active matrix	--
Number of pixels	640*3RGB(H)X480(V)	Dots
Pixel arrangement	RGB stripe	--
Pixel Pitch (W*H)	0.109.5*0.109.5	mm
Active area	70.08*52.56	mm
LCM Mechanical Outline Size(WHT)	76.8463.843.27	mm
Viewing direction	ALL O’CLOCK
LCM Driver IC	NV3052C	-
LCM interface	RGB	-
Lcm pin n count	54
Approx. Weight	TBD	g
Touch screen structure	G+G
Touch Driver IC	GT5663	-
Touch Interface	I2C
Backlight leds	6	pcs
Backlight current	20	ma
Backligh voltage	18	v
operating temperature	-20+70	℃
storage temperature	-30+80	℃
Lumens degrees	400	Cd/㎡
