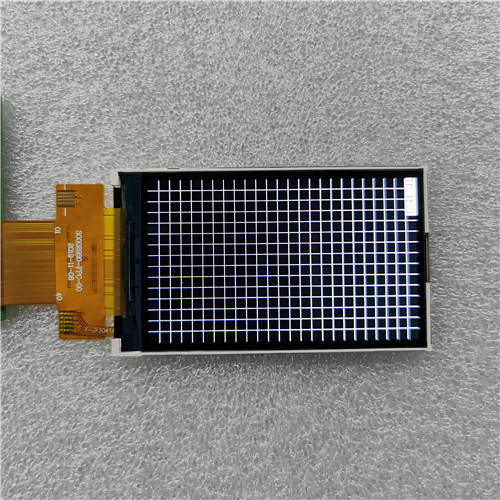

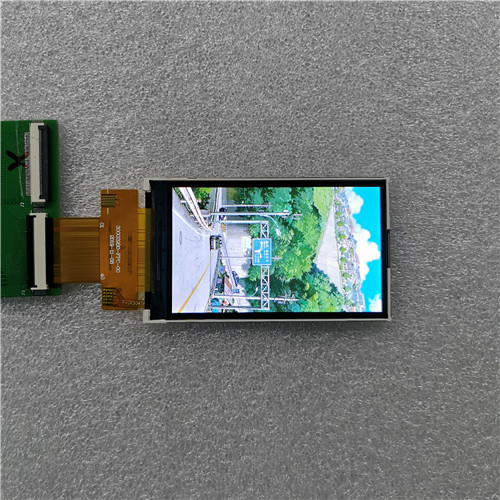

3.0 inch Color LCD Display Screens

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Liquid crystals are simple and very efficient electro-optic transducers, or light valves. Thinfilm transistors are simple electronic control devices which can be fabricated on large transparent substrates. These two technologies, when combined, allow the fabrication of electronic displays which challenge the dominance of the cathode ray tube (CRT). This paper reviews the history of this important development, presents the current status in comparison to the color CRT, and describes the remaining challenges to be overcome if the color CRT is truly to be displaced.

Model:300029S0
Resolution: 240*400
Perspective: EWV
Color: 262K
Features: high brightness, wide viewing angle, low power consumption
Application areas: automotive electronics, smart speakers, handheld devices, medical equipment, digital electronics, smart homes, household appliances, etc.

ITEM	Sandard value	Unit
Model Number	300029S0
size	3.0	Inch
LCD Type	Normally White	--
Drive element	TFT active matrix	--
Number of pixels	240*3RGB(H)X400(V)	Dots
Pixel arrangement	RGB stripe	--
Pixel Pitch (W*H)	0.162*0.162	mm
Active area	38.88(H) * 64.8(V)	mm
LCM Mechanical Outline Size(WHT)	45.04772.55	mm
Viewing direction	12 O’CLOCK	-
LCM Driver IC	ST7793	-
LCM interface	MCU 16 BIT Interface	-
Lcm pin n count	40
Lumens degrees	350	Cd/㎡
