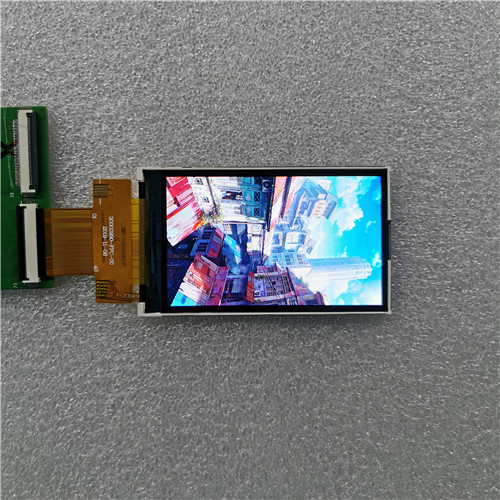

3.0" IPS Display Screen
  • 3.0" IPS Display Screen
  • 3.0" IPS Display Screen
  • 3.0" IPS Display Screen
  • 3.0" IPS Display Screen
  • 3.0" IPS Display Screen
  • 3.0" IPS Display Screen
3.0" IPS Display Screen
3.0" IPS Display Screen
3.0" IPS Display Screen
3.0" IPS Display Screen
3.0" IPS Display Screen
3.0" IPS Display Screen

3.0" IPS Display Screen

Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description

TFT LCD displays are very convenient because of the energy consumption associate with this display, knowingly in today’s society saving energy is a number one priority to reduce greenhouse gas and ensure a better future generations. Due to the construction of TFT structures Pixel like materials does not consume much energy to begin with except this material consume far less power than a comparable CRT monitor. The images of a TFT display does not rely on the scanning of electron beams instead they are free from flicker and has a crisp image, with no geometric distortion. The physical design of TFT display are space savors which can be position anywhere in ones office, or house with a rotations mechanism in place for less constrains on space.


Model: 300029S0
Resolution: 240*400
Perspective: EWV
Color: 262K
Features: high brightness, wide viewing angle, low power consumption
Application areas: automotive electronics, smart speakers, handheld devices, medical equipment, digital electronics, smart homes, household appliances, etc.

ITEM

Sandard value

Unit

Model Number

300029S0



size

3.0

Inch

LCD Type

Normally White

--

Drive element

TFT active matrix

--

Number of pixels

240*3RGB(H)X400(V)

Dots

Pixel arrangement

RGB stripe

--

Pixel Pitch (W*H)

0.162*0.162

mm

Active area

38.88(H) * 64.8(V)

mm

LCM Mechanical Outline Size(W*H*T)

45.04*77*2.55

mm

Viewing direction

12  O’CLOCK

-

LCM Driver IC

ST7793

-

LCM interface

MCU 16 BIT Interface

-

Lcm pin n count

40



Lumens degrees

350

Cd/

Img 20200218 184201Img 20200218 184211Img 20200218 184217Img 20200218 184224Img 20200403 114138
