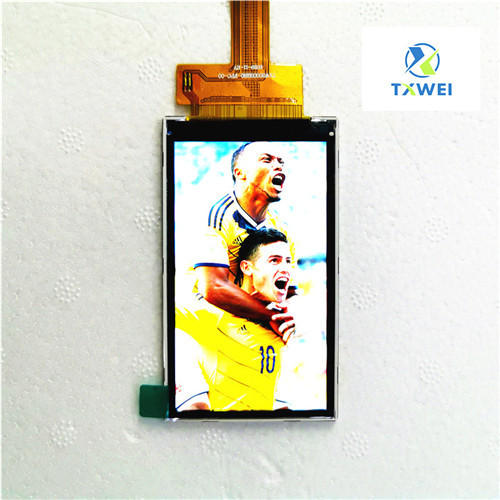

3.0 Inch TFT LCD Display

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

TFT LCD Display (Thin-Film-Transistor Liquid Crystal Display) technology has a sandwich-like structure with liquid crystal material filled between two glass plates. Two polarizer filters, color filters (RGB, red/green/blue)and two alignment layers determine exactly the amount of light is allowed to pass and which colors are created. Each pixel in an active matrix is paired with a transistor that includes capacitor which gives each sub-pixel the ability to retain its charge, instead of requiring an electrical charge sent each time it needed to be changed. The TFT layer controls light flow a color filter displays the color and a top layer houses your visible screen.

Model:300032B0
Resolution: 480*854
Viewing angle: IPS
Color: 16.7M
Features: high brightness, full viewing angle, low power consumption, high resolution
Application areas: automotive electronics, smart speakers, translators, handheld devices, medical equipment, digital electronics, smart homes, white goods, etc.

ITEM	Sandard value	Unit
Model Number	300032B0
size	3.0	Inch
LCD Type	Normally Blcak	--
Drive element	TFT active matrix	--
Number of pixels	480*3RGB(H)X854(V)	Dots
Pixel arrangement	RGB stripe	--
Pixel Pitch (W*H)		mm
Active area	36.72(H) * 65.28(V)	mm
LCM Mechanical Outline Size(WHT)	43.0474.912.3	mm
Viewing direction	ALL O’CLOCK	-
LCM Driver IC	ST7701S	-
LCM interface	MIPI Interface	-
Lcm pin n count	31
Backlight leds	6	pcs
Backlight current	20	ma
Backligh voltage	18	v
operating temperature	-20+70	℃
storage temperature	-30+80	℃
Lumens degrees	400	Cd/㎡
