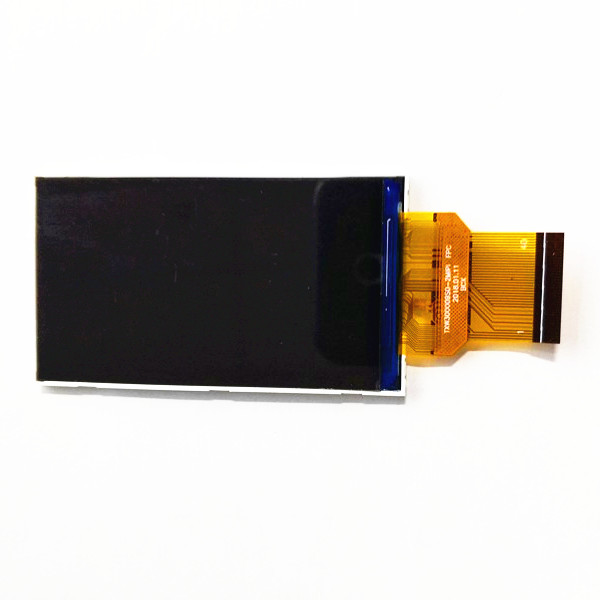

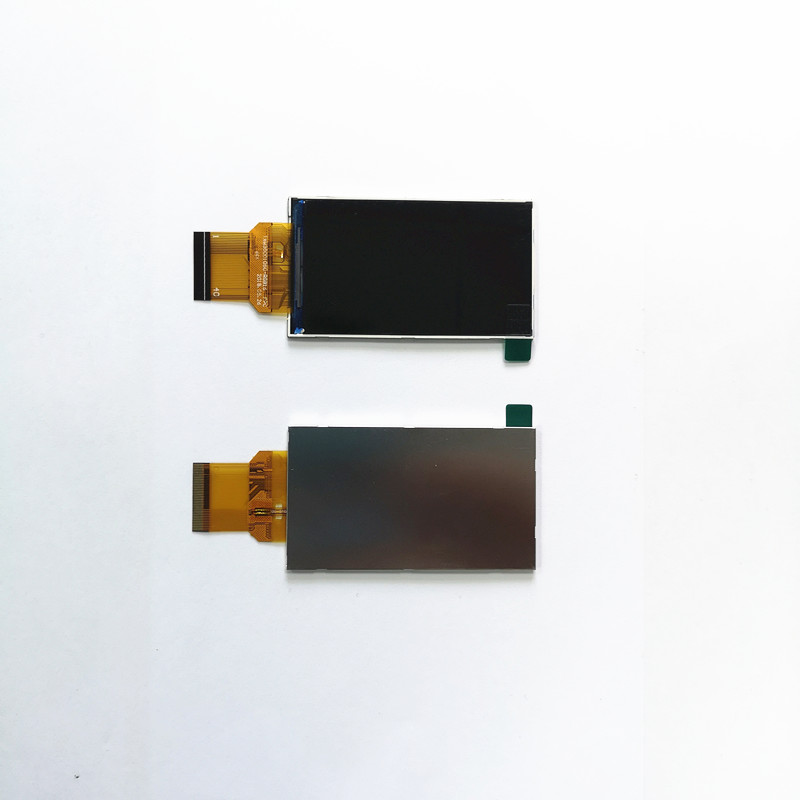

3.0 Inch IPS Display Screen

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

TFT stands for thin-film transistor and is used with LCD to improve image quality over older digital display technologies. Each pixel on a TFT LCD has its own transistor on the glass itself, which offers greater control over the images and colors that it renders.
TFT is also an abbreviation for other technical terms including time from transmission, text fix test, Trinitron flat tube, and trivial file transfer protocol.
Model:300010S0
Resolution: 240*400
Perspective: EWV
Color: 262K
Features: high brightness, wide viewing angle, low power consumption
Application areas: automotive electronics, smart speakers, handheld devices, medical equipment, digital electronics, smart homes, household appliances, etc.

ITEM	Sandard value	Unit
Model Number	300009S0
size	3.0	Inch
LCD Type	Normally White	--
Drive element	TFT active matrix	--
Number of pixels	360*3RGB(H)X640(V)	Dots
Pixel arrangement	RGB stripe	--
Pixel Pitch (W*H)	0.102*0.102	mm
Active area	36.72(H) * 65.28(V)	mm
TP+LCM Mechanical Outline Size(WHT)		mm
LCM Mechanical Outline Size(WHT)	43.0474.912.25	mm
TP Mechanical Outline Size(WHT)		mm
Viewing direction	ALL O’CLOCK	-
LCM Driver IC	ST7701S	-
LCM interface	RGB 16 BIT Interface	-
Lcm pin n count	40
Approx. Weight	TBD	g
Touch screen structure
Touch Driver IC		-
Touch Interface
Lumens degrees	400	Cd/㎡
