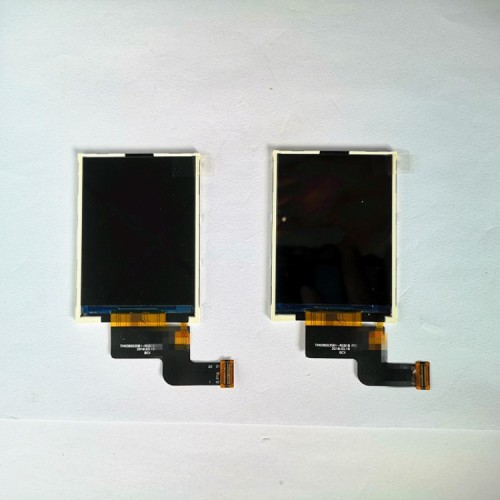

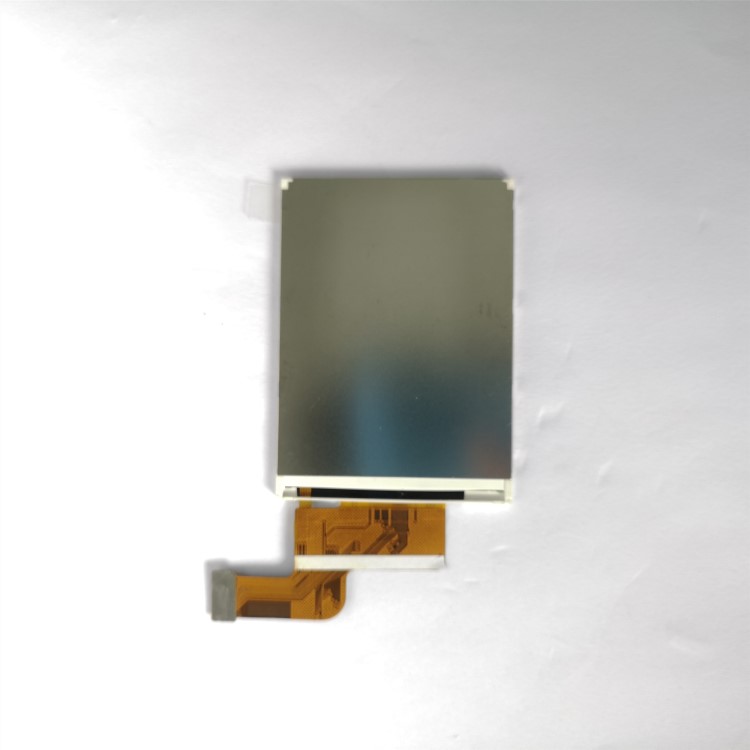

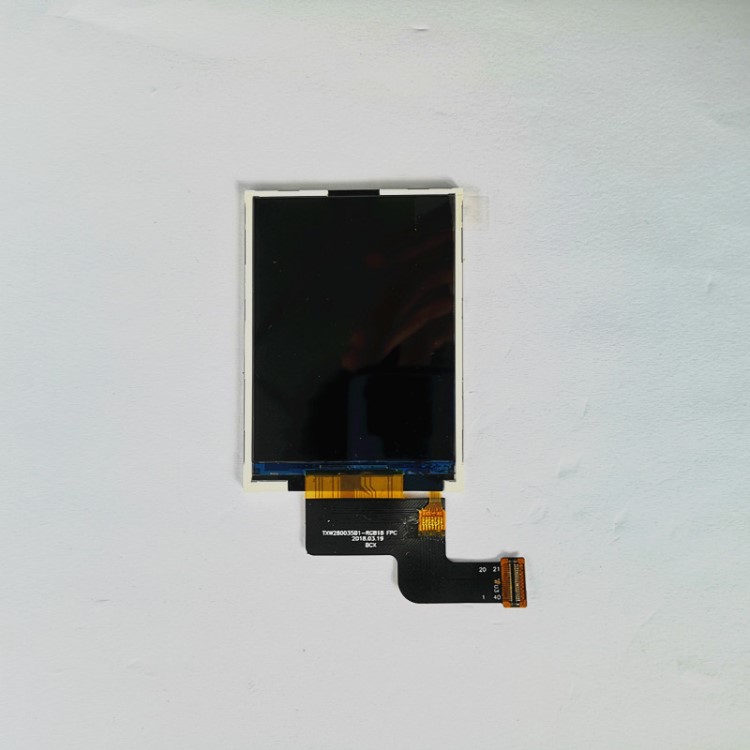

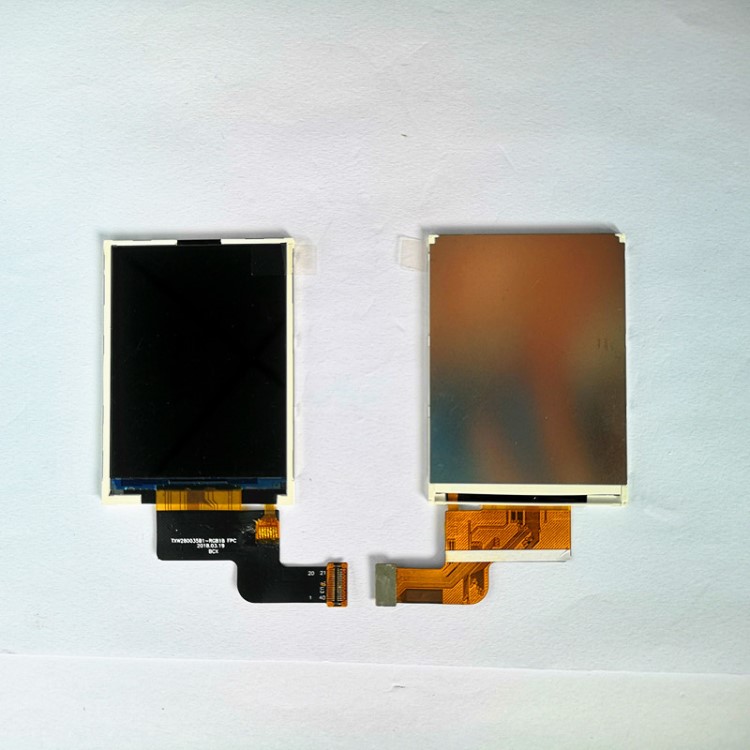

2.8 Inch TFT LCD Display

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Thin-film transistor LCDs are often preferred over other types of LCDs for several reasons. First, they are typically brighter than their counterparts.
Another benefit of thin-film transistor LCDs is their faster refresh rate. Because they are designed with a single transistor for each pixel, the pixels can be activated and deactivated more quickly than with other types of LCDs, resulting in a faster refresh rate. The high refresh alone is reason enough to consider thin-film transistor over other types of LCD technologies.
In addition to a high refresh rate, thin-film transistor LCDs also provide a high color palette. Depending on the specific type, it may support up to 64 million different colors.

Model: 280035B1
Resolution: 240*320
Viewing angle: IPS
Color: 65K
Features: high brightness, full viewing angle, low power consumption
Application areas: electronic tags, smart speakers, handheld devices, automotive electronics, medical equipment, digital electronics, smart homes, white goods, etc.

ITEM	Sandard value	Unit
Model Number	280035B1
size	2.8	Inch
LCD Type	Normally Black	--
Drive element	TFT active matrix	--
Number of pixels	240*3RGB(H)X320(V)	Dots
Pixel arrangement	RGB stripe	--
Pixel Pitch (W*H)	0.180*0.180	mm
Active area	43.2(H) *57.6(V)	mm
LCM Mechanical Outline Size(WHT)	5069.52.3	mm
Viewing direction	ALL O’CLOCK	-
LCM Driver IC	ST7789V	-
LCM interface	RGB18 BIT Interface	-
Lcm pin n count	40
Display Color	262k	g
Touch screen structure
Touch Driver IC		-
Touch Interface
Lumens degrees	450	Cd/㎡
