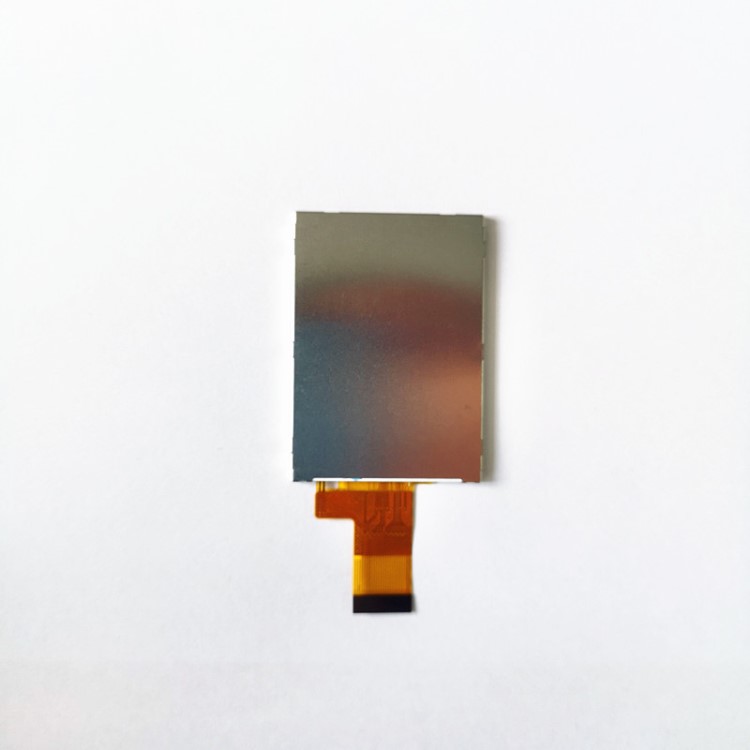

2.4 inch Color LCD Display Screens

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

A thin-film transistor (TFT) is a type of field-effect transistor that is usually used in a liquid crystal display (LCD). This type of display features a TFT for each individual pixel. These TFTs act as individual switches that allow the pixels to change state rapidly, making them turn on and off much more quickly. Because these TFTs are arranged in a matrix, they are called "active-matrix" TFT.

ITEM	Sandard value	Unit
LCD Type	Normally black	--
Drive element	TFT active matrix	--
Number of pixels	240*3RGB(H)X320 (V)	Dots
Pixel arrangement	RGB stripe	--
Pixel Pitch (W*H)	0.153(H) x0.153 (V)	mm
Active area	36.72(H) x 48.96(V)	mm
Module Size(WHT)	40.44 x57 x2.15	-
Viewing direction	ALL O’CLOCK	-
TFT Driver IC	ST7789V	-
TFT interface	8bit MCU/4line SPI interface	-
Approx. Weight	TBD	g
LCM Size(WHT)	42.72(W)x58.65(H)x2.35(T)	mm
LCM+RTP Size(WHT)	42.72(W)x58.65(H)x3.55(T)	mm
Touch structure	--
Touch Driver IC	--	-
Touch Interface	--
