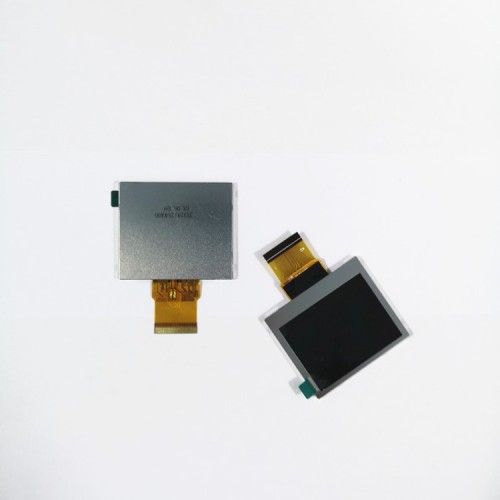

2.31 Inch LCD Display

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

TFT LCDs offer several advantages over other types of displays (CRT, Plasma). It is light, thin, and energy efficient which made mobile phones, laptops, hang-on wall LCD TV, flat computer monitors and other handhold devices possible. TFT LCDs are also relatively inexpensive which makes it dominant in display world.

Model: 230009S0
Resolution: 320*240
Viewing angle: IPS
Color: 65K
Features: high brightness, full viewing angle, upper and lower stainless steel iron frame, low power consumption, 4:3 structure, etc.
Application areas: driving recorder, digital camera, medical equipment, handheld PDA, smart home, instrumentation, etc.

ITEM	Sandard value	Unit
Model Number	230009S0
size	2.31	Inch
LCD Type	Normally White	--
Drive element	TFT active matrix	--
Number of pixels	320*3RGB(H)X240(V)	Dots
Pixel arrangement	RGB stripe	--
Pixel Pitch (W*H)	0.1461*0.1461	mm
Active area	46.752(H) *35.064(V)	mm
LCM Mechanical Outline Size(WHT)	55.247.552.75	mm
Viewing direction	12 O’CLOCK	-
LCM Driver IC	ILI9342C	-
LCM interface	RGB 6 BIT Interface	-
Lcm pin n count	40
Backlight leds	3	pcs
Backlight current	60	ma
Backligh voltage	2.8-3.3	v
operating temperature	-20+70	℃
storage temperature	-30+80	℃
Lumens degrees	350	Cd/㎡
