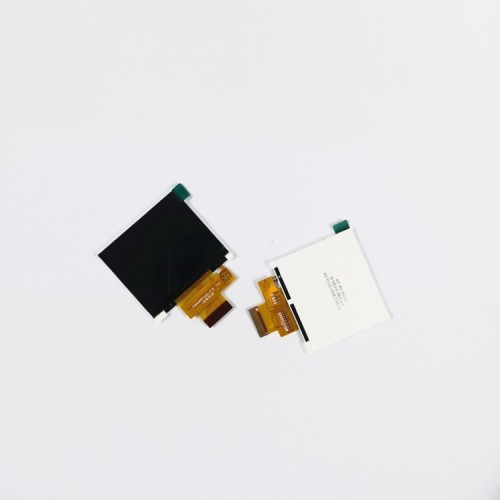

2.31 Inch TFT LCD Display

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

When we say type of lcd, we mean two kinds of LCDs: Active TFT color display and Monochrome passive display. Before TFT display was invented, the world used passive matrix lcd for many years. passive matrix lcd can only used for monochrome displays like calculators, watches (not iWatch), thermostats (not Nest), utility meters etc. Thanks for TFT LCD, the world is more colorful.

Model: 230010S0
Resolution: 320*240
Perspective: EWV
Color: 65K
Features: high brightness, full viewing angle, ultra-thin design with integrated backlight, low power consumption, square structure, etc.
Application areas: medical equipment, handheld PDA, digital electronics, smart home, white goods, etc.

ITEM	Sandard value	Unit
Model Number	230010S0
size	2.31	Inch
LCD Type	Normally White	--
Drive element	TFT active matrix	--
Number of pixels	320*3RGB(H)X240(V)	Dots
Pixel arrangement	RGB stripe	--
Pixel Pitch (W*H)	0.1461*0.1461	mm
Active area	46.752(H) *35.064(V)	mm
LCM Mechanical Outline Size(WHT)	50.0845.82.3	mm
Viewing direction	12 O’CLOCK	-
LCM Driver IC	ILI9342C	-
LCM interface	MCU 16 BIT Interface	-
Lcm pin n count	30
Backlight leds	4	pcs
Backlight current	60-80	ma
Backligh voltage	2.8-3.3	v
operating temperature	-20+70	℃
storage temperature	-30+80	℃
Lumens degrees	350	Cd/㎡
