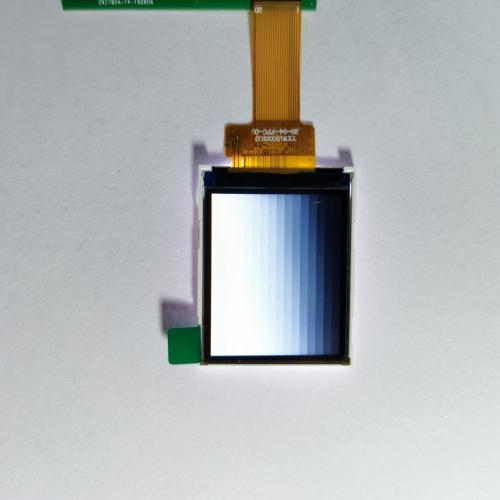

1.77 Inch TFT LCD Display

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

A thin-film-transistor liquid-crystal display (TFT LCD) is a variant of a liquid-crystal display (LCD) that uses thin-film transistor (TFT) technology to improve image qualities such as addressability and contrast. A TFT LCD is an active-matrix LCD, in contrast to passive-matrix LCDs or simple, direct-driven LCDs with a few segments.
TFT LCDs are used in appliances including television sets, computer monitors, mobile phones, handheld video game systems, personal digital assistants, navigation systems and projectors.
TFT LCDs are also used in car instrument clusters because they allow the driver to customize the cluster, as well as being able to provide a skeuomorphic, analog-like display with digital elements.

Product parameter description
Model: 180021C0
Resolution: 128*176
Viewing angle: TN
Display color: 65K
Product features: HD, high highlights, plug-in
Application areas: medical equipment, handheld PDA, smart home, industrial control equipment, Internet of Things, digital electronics, home appliances, etc.

ITEM	Sandard value	Unit
Model Number	180021C0
size	1.77	Inch
LCD Type	Normally White	--
Drive element	TFT active matrix	--
Number of pixels	128*3RGB(H)X176(V)	Dots
Pixel arrangement	RGB stripe	--
Pixel Pitch (W*H)		mm
Active area	28.03(H) * 35.04(V)	mm
LCM Mechanical Outline Size(WHT)	34.3 43.7 2.35	mm
Viewing direction	12 O’CLOCK
LCM Driver IC	ST7735S	-
LCM interface	MCU8 Bit Interface	-
Lcm pin n count	20
Lumens degrees	300	Cd/㎡
Backlight leds	2	pcs
Backlight current	40	ma
Backligh voltage	3.2	v
operating temperature	-20+70	℃
storage temperature	-30+80	℃
