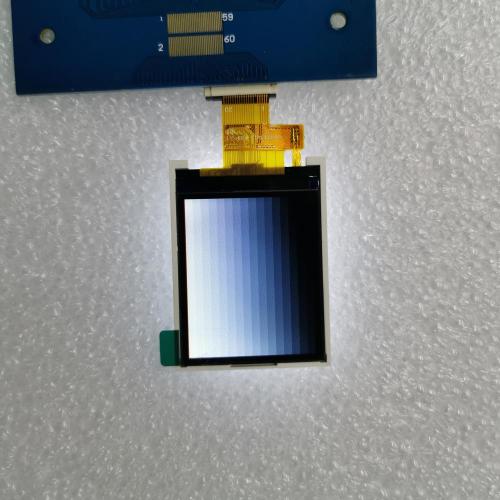

1.77 Inch IPS TFT LCD Display

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

A thin-film-transistor liquid-crystal display (TFT LCD) is a variant of a liquid-crystal display (LCD) that uses thin-film-transistor (TFT) technology to improve image qualities such as addressability and contrast. A TFT LCD is an active matrix LCD, in contrast to passive matrix LCDs or simple, direct-driven[clarification needed LCDs with a few segments.
TFT LCDs are used in appliances including television sets, computer monitors, mobile phones, handheld devices, video game systems, personal digital assistants, navigation systems, projectors and car dashboards.

ITEM	Sandard value	Unit
Model Number	180018C0
size	1.77	Inch
LCD Type	Normally White	--
Drive element	TFT active matrix	--
Number of pixels	128*3RGB(H)X176(V)	Dots
Pixel arrangement	RGB stripe	--
Pixel Pitch (W*H)		mm
Active area	28.03(H) * 35.04(V)	mm
CTP+LCM Mechanical Outline Size(WHT)	NC	mm
LCM Mechanical Outline Size(WHT)	34.7 46.7 2.5	mm
CTP Mechanical Outline Size(WHT)	NC	mm
Viewing direction	12 O’CLOCK
LCM Driver IC	ST7735S	-
LCM interface	MCU8 Bit Interface	-
Lcm pin n count	20
Approx. Weight	TBD	g
Touch screen structure	NC
Touch Driver IC	NC	-
Touch Interface	NC
Luminance	300	cd/㎡
contrast Ratio	Tye 300
