0.96 Inch LCD Display
  • 0.96 Inch LCD Display
0.96 Inch LCD Display

0.96 Inch LCD Display

Get Latest Price
Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description

LCD (Liquid Crystal Display) is a type of flat panel display which uses liquid crystals in its primary form of operation. LEDs have a large and varying set of use cases for consumers and businesses, as they can be commonly found in smartphones, televisions, computer monitors and instrument panels.
LCDs were a big leap in terms of the technology they replaced, which include light-emitting diode (LED) and gas-plasma displays. LCDs allowed displays to be much thinner than cathode ray tube (CRT) technology. LCDs consume much less power than LED and gas-display displays because they work on the principle of blocking light rather than emitting it. Where an LED emits light, the liquid crystals in an LCD produces an image using a backlight.

Model: 096004S0-BZ

Resolution: 80*160
Viewing angle: IPS
Color: 65K
Features: high brightness, full viewing angle, ultra-thin design with integrated backlight, low power consumption, rectangular structure

Application: smart wear, children's toys, electric meters, valve instruments, medical equipment, digital electronics, etc.

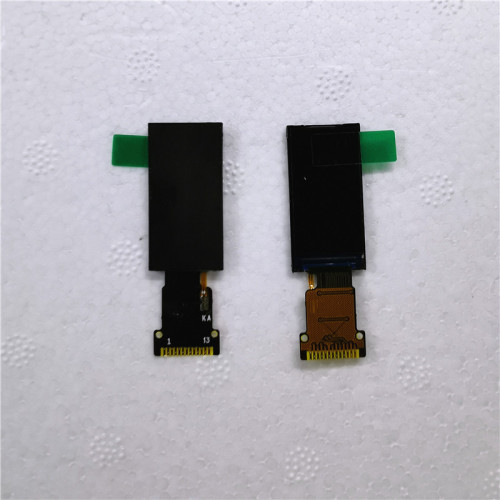

Img 20191031 202544


ITEM

Sandard value

Unit

Model Number

TXW096004S0-



size

0.96

Inch

LCD Type

Normally black

--

Drive element

TFT active matrix

--

Number of pixels

80*3RGB(H)X160(V)

Dots

Pixel arrangement

RGB stripe

--

Active area

10.8(H) * 21.7(V)

mm

LCM Mechanical Outline Size(W*H*T)

13.5*27.95*1.5

mm

Viewing direction

ALL O’CLOCK

-

LCM Driver IC

ST7735S

-

LCM interface

SPI 4 LINE Interface

-

Lcm pin n count

13



Backlight leds

1

pcs

Backlight current

20

ma

Backligh voltage

3.2

v

Operating temperature

-20+70

℃

storage temperature

-30+80

℃

Lumens degrees

500-600

Cd/㎡


1. Introduction

1.1 Scope of application

This specification applies to the LCD module that is supplied by Tian Xian Wei

Technology CO., LTD.

LCD specification: Dots 80xRGBx160.

As to basic specification of the driver IC, refer to the IC (Sitronix:ST7735S)

specification and data book.

All material & processing of the LCD module should be Lead Free.

1.2 TFT features:

Structure:  TFT PANNEL+IC +FPC+BL;

ALL O’clock Type LCD

80 dot-segment and 160 dot-common outputs;

262K Color can be selected by software;

White LED back light;

SPI 4 Line interface



1.3 Applications:



2. LCM General specification



ITEM

Sandard value

Unit

LCD Type

Normally Black

--

Drive element

TFT active matrix

--

Number of pixels

80*3RGB(H)X160(V)

Dots

Pixel arrangement

RGB Vertical stripe



--

Pixel Pitch (W*H)

0.135(W) × 0.1356(H)

mm

Active area

10.8(W) × 21.7(H)

mm

Viewing direction

ALL O’CLOCK

-

TFT Driver IC

ST7735S



TFT interface

SPI 4 Line interface



-

Module Size(W*H*T)

13.5 (W) ×27.95(H) ×1.5(T)

mm

Approx. Weight

TBD

g

Touch structure





Touch Driver IC



-

Touch Interface







 3.Absolute Maximum Rating

Characteristics

Symbol

Min.

Max.

Unit

LCM Operating Temperature

TOPR

-20

+60

°C

LCM Storage Temperature

TSTG

-30

+70

°C

Humidity

RH

-

90

%



4.Electrical Characteristics

4.1 TFT DC Characteristics

Characteristics

Symbol

Min.

Typ.

Max.

Unit

Supply Voltage for I/O

VDDIO

1.65

1.8

3.3

V

Supply Voltage for(DC/DC)

VDD

2.5

2.8

3.3

V

Supply Voltage for(DC/DC)

AVDD







V

Supply Voltage for(DC/DC)

AVEE







V

Current Consumption

IDD

-

TBD

-

mA

IDD-SLEEP



TBD



uA



4.2 Back-Light Unit Characeristics

The back-light system is an edge-lighting type with 1 white LEDs. The characteristics of the back-light are shown in the following tables.



Characteristics

Symbol

Min.

Type

Max.

Unit

Notes

Forward Voltage

VF

2.8

--

3.2

V

-

Forward current

IF

--

20

-

mA

-

Luminance(With LCD)

Lv

500

550

600

cd/m2

-

LED life time

N/A

----

30,000

--

Hr

Note 1

Note:

(1) The “LED life time” is defined as the module brightness decrease to 50% of original brightness at IL=20mA/LED. The LED life time could be decreased if operating IL is larger than 25mA/LED.

Backlight circuit diagram shown in below:

5. Module Function Description

    6. Timing Characteristics

7.Optical Characteristics

  8. Reliability Test Item

No.

Test Item

Test Condition

Notes

1

High Temp. Storage

+70°C / 96H

1. Functional test isOK.

Missing Segment,short, unclear segment non-display,display abnormally and liquid crystal leakare un-allowed.

2. No low

temperature bubbles,end seal loose andfall, frame rainbow.





2

Low Temp. Storage

-30°C / 96H

3

High Tempe. Operating

+60°C / 96H

4

Low Tempe. Operating

-20°C / 96H

5

High Temperature /Humidity storage

50°C x 90%RH /96H

6

Thermal and cold shock

Static state， -20℃（30min） ~60℃ （30min），50 cycles





9. Packing Method----TBD
