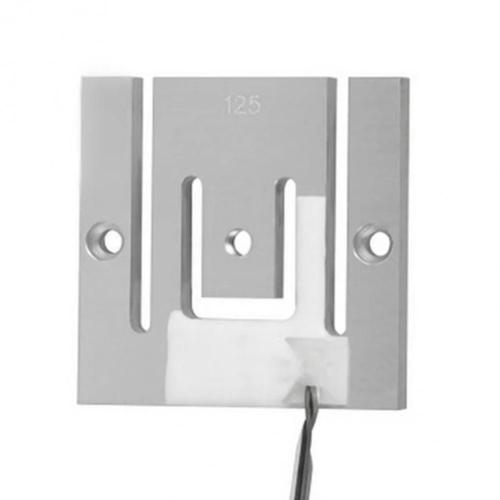

NH1A3 Plate type weighing sensor
-
$10.00≥10 Set/Sets
- Min. Order:
- 10 Set/Sets
- Min. Order:
- 10 Set/Sets
- Transportation:
- Ocean, Land, Air, Express
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen,China |
|---|---|
| Productivity: | 100000 |
| Supply Ability: | 50000 Set/Sets per Month,Express could be used including DHL, Fedex, EMS, TNT etc. Orders could be |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB |
| Certificate: | ISO9001. ISO14001 |
| HS Code: | 9026809000 |
| Transportation: | Ocean,Land,Air,Express |
| Port: | Shenzhen |
Planar beam load cells
Planar beam load cells are commonly used in a variety of weighing applications. They are normally installed in sets of 3 or 4 under a platform in conjunction with a summing network. It’s low profile construction is ideal for scale design where space is limited such as medical scales，low profile load cell are also used in postal scales, airport baggage scales or retail checkout scales.
Planar Beam Load Cell range is designed for applications where a low profile solution is needed. Our mini planar beam load cells would be used in sets of three or four per scale in applications such as retail scales, medical scales or any weighing environment where space is a limiting factor. Shall be used by set, one set contains four pcs.The NA1A2 is available in a wide range of capacities – from 5.5kg thru to 90kg.
Features:
The elastomer is made of 2024 aluminum alloy material and undergoes colorless anodizing treatment; The strain gauge material is imported from the United States and Japan, with adhesive sealing treatment, suitable for various working environments, simple structure, and convenient installation
Suitable for various electronic weighing equipment such as ultra-thin medical scales and ultra-thin medical platform scales
| PARAMETERS | |||
| Sensor Range | KG | 30/50/90 | Rated load |
| Comprehensive error | FS | 0.03% | Comprehensive error |
| sensitivity | mv/v | 1.0±10% | Rated output |
| Zero point output | FS | ±1% | Zero balance |
| creep | %FS/30min | ±0.03 | Creep |
| Temperature Effect On Zero | %FS/10℃ | ±0.02 | Temp.effect on zero |
| temperature effect on sensitivity | %FS/10℃ | ±0.03 | Temp.effect on span |
| Nonlinear | %FS | ±0.02 | Non-Linearity |
| lag | %FS | ±0.02 | Hysteresis |
| repeatability | %FS | ±0.02 | Repeatability |
| Impedance | Ω | 1000±5 | Input resistance |
| Output Impedance | Ω | 1150±50 | output resistance |
| insulation resistance | MΩ | ≥5000(100V) | Insulation resistance |
| Temperature compensation range | ℃ | -10-40 | Compensated temp.range |
| Operating temperature range | ℃ | -35-65 | Use temp.range |
| Excitation | V | 5-12（DC） | Excitation voltage |
| Safe overload range | % | 150 | Safe overload |
| Extreme overload range | % | 200 | Ultimate overload |
| Connection |
Red: Input ( + ) White: Output ( - ) |
Wiring schematic diagram | |
|
Black: Input ( - ) Green: Output ( + ) |
|||
|
|
|
Connection mode |
|
|
|
Specificatio |
|
|
| Dimension |
|
