300KG Wheatstone Bridge Load Cell For Various Application
The use of low-profile load cells is becoming more and more common, as weight measurement applications are required to be more compact. At Hanyu, we understand the challenges our customers face and design comprehensive sensors suitable for specific applications and environments.
Planar Beam Load Cells HAA-W7 is made of aluminum alloy.Our series of low profile load cells provides an out-of-the-box solution for height-constrained applications. If our off-the-shelf products are not suitable, then we can work with customers to develop customized solutions. We have highly skilled engineers who can design and manufacture sensors and technologies suitable for the purpose.
In addition to our thin load cell series, there are also a wide range of electronic products that can achieve complete system integration. Contact us to discuss your application in more detail.
|
|
| Key Features |
* Very low profile
* Matched output
* Mainly used for low profile infant and adult medical scales, low profile platform scales, personal scales, airport luggage scales, postal scales etc.
Mainly used for low profile infant and adult medical scales, low profile platform scales, personal scales, airport baggage scales,

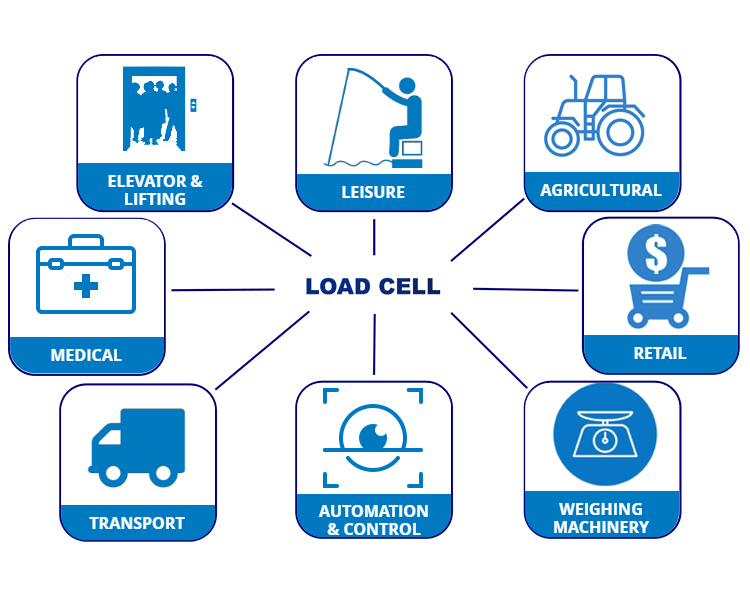

Applications
postal scales etc.
Dimensions
Specifications
Model No.:
HAA-W7
Rated Capacity
75, 150, 300kg
Accuracy Class
B
Rated output
0.8±10%mV/V
Zero balance
±0.1%R.O.
Input resistance
1130±20Ω
Output resistance
1000±10Ω
Linearity Error
±0.03%R.O.
Repeatability Error
±0.03%R.O.
Hysteresis Error
±0.03%R.O.
Creep in 2 minute
±0.05%R.O.
Temp.Effect on Output
±0.03%R.O./10°C
Temp.Effect on Zero
±0.05%R.O./10°C
Excitation, Recommended
≤10VDC
Operating Temperature Range
-10 - +40°C
Safe overload
150%.R.C.
Insulation Resistance
≥2000MΩ(50VDC)
Cable,and length
φ0.8mm × 0.6m
|
Wiring code |
