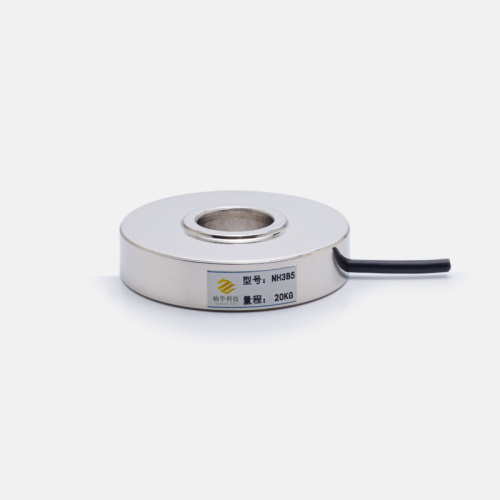

NH3B5 Ring Type Compression Load cell

$50.00

≥10 Piece/Pieces

Min. Order:: 10 Piece/Pieces

Min. Order:: 10 Piece/Pieces

Transportation:: Ocean

Port:: Any Port of China

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	quzhou,China
Supply Ability:	10000 Piece per Month,Express could be used including DHL, Fedex, EMS, TNT etc. Orders could be
Payment Type:	L/C,T/T
Incoterm:	FOB
Certificate:	ISO9001. ISO14001
HS Code:	9026809000
Transportation:	Ocean
Port:	Any Port of China

Product Description

The NH3B5 Load Cell is made of Stainless steel,It is suitable for measuring and controlling electronic belt scale, silo scale, batching scale, electromechanical combination scale, hook scale and other force value and computer control batching system.High Accuracy Load Cell

Features:

Range: 20KG-1000KG

Suitable for force detection devices with small installation space such as pressing and plugging

Structure: Alloy steel material, surface electroplating treatment;

Appearance: waterproof and sealed

Connection mode

Specification

PARAMETERS
Sensor Range		20KG-1000KG	Rated load
Accuracy level
Comprehensive error	FS	0.005	Comprehensive error
sensitivity	mv/v	1.5-2.0	Rated output
Zero point output	FS	±1%	Zero balance
creep	%FS/30min	±0.5	Creep
Zero temperature effect	%FS/10℃	±0.5	Temp.effect on zero
Sensitivity temperature influence	%FS/10℃	±0.2	Temp.effect on span
Input impedance	Ω	350±30	Input resistance
Output impedance	Ω	350±5	output resistance
insulation resistance	MΩ	≥5000(100V)	Insulation resistance
Temperature compensation range	℃	-10-40	Compensated temp.range
Operating temperature range	℃	-35-65	Use temp.range
Excitation voltage	V	5-12（DC）	Excitation voltage
Safe overload range	%	150	Safe overload
Protection level		IP65	Defend grade
wire	m	1.5米Φ3屏蔽线	Cable

Dimension
