20kg Strong Stability Load Cell For Arduino
-
$15.00≥1000 Piece/Pieces
- Min. Order:
- 1000 Piece/Pieces
- Min. Order:
- 1000 Piece/Pieces
- Transportation:
- Ocean, Land, Air, express
- Port:
- Shenzhen China
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | Shenzhen China |
|---|---|
| Productivity: | 100000 Piece per Month |
| Supply Ability: | 100000 Piece per Month |
| Payment Type: | L/C,T/T,Paypal,Money Gram,Western Union |
| Incoterm: | FOB,CFR,EXW |
| Certificate: | ISO9001. ISO14001 |
| HS Code: | 9026809000 |
| Transportation: | Ocean,Land,Air,express |
| Port: | Shenzhen China |
Product Description
Product Description
|
200g Miniature Load Cell Strain Gauge |
| Key Features |
|
* Aluminum alloy
|
Mainly used for electronic balances, kitchen scales etc.
Applications

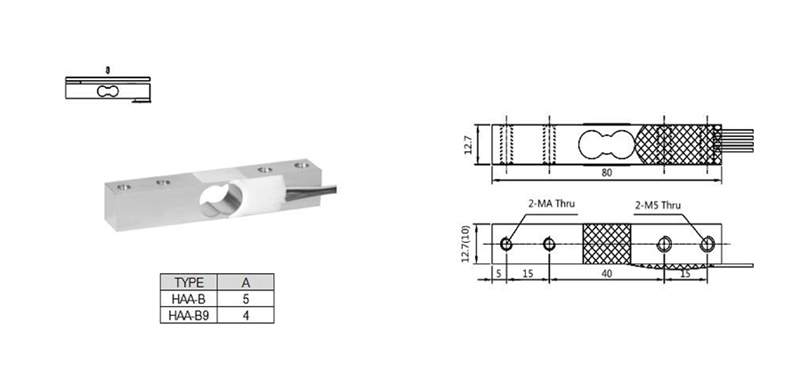

Dimensions
Specifications
| Model No.: | HAA-B |
| Rated Capacity | 1, 3, 5, 10, 20kg |
| Accuracy Class | S |
| Rated output | 1.0±20%mV/V |
| Zero balance | ±0.1 mV/V |
| Input resistance | 1130±20Ω |
| Output resistance | 1000±10Ω |
| Linearity Error | ±0.05%R.O. |
| Repeatability Error | ±0.05%R.O. |
| Hysteresis Error | ±0.05%R.O. |
| Creep in 2 minute | ±0.05%R.O. |
| Temp.Effect on Output | ±0.05%R.O./10°C |
| Temp.Effect on Zero | ±2%R.O./10°C |
| Excitation, Recommended | ≤6VDC |
| Operating Temperature Range | -10 - +40°C |
| Safe overload | 150%.R.C. |
| Insulation Resistance | ≥2000MΩ(50VDC) |
| Cable,and length | φ0.8mm × 0.2m |
|
Wiring code |
|
