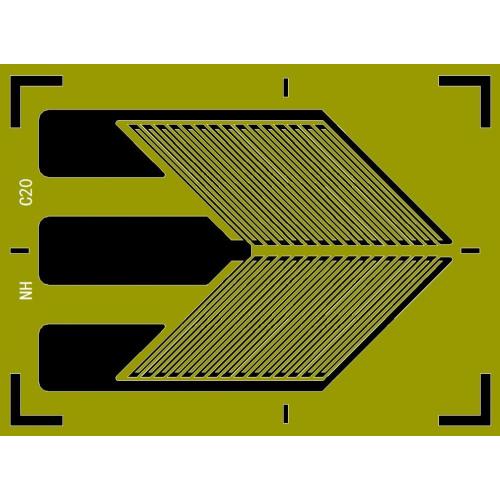

Double shear HA strain gauges

Deliver precise force measurements across a spectrum of industrial tasks with our Double Shear HA Strain Gauges. These sensors offer a practical solution to achieving accurate readings for both force and torque without overstretching your budget.

Compact and Accurate Monitoring
Enjoy the reliability of a Full Bridge Strain Gauge with the double shear design of our HA strain gauges, giving you accurate tension, compression, and force monitoring.Their compact size is a big plus, especially when you’re integrating them into Eb Load Cell Transducer designs or dealing with limited space on existing machinery.

Ready for Diverse Applications:
With models like the 2HA and 3HA available, you can select the gauge that meets your project's specific needs—whether you're measuring subtle stresses or more significant forces.These gauges work well for general performance checks on mechanical parts or as a For Compression Sensor, keeping tabs on structure loads, and they're versatile enough to provide useful data for numerous situations.

Durability Meets Versatility:
Crafted with longevity in mind, these General Use Strain Gauges are constructed to endure the rigors of industrial operations.Address the challenges of varying temperatures with our temperature-compensated versions, ensuring you get unwavering accuracy regardless of your environment.

Your Partner in Precision Measurement:
The Double Shear HA Strain Gauges are your trustworthy partner for all your force measurement needs, from simple applications to complex load cell systems. Get in touch to see how these sensors can fit seamlessly into your project and keep your measurements accurate and consistent.

FEATURE

Ba & Za series: polyimide base, made of imported Kang copper foil, totally enclosed structure; can realize temperature self compensation and creep self compensation at the same time; high precision, good stability, easy to use, strong adhesion, suitable for 0.02 level sensor. After sealing with protective cover layer, the protection is good and the performance is more stable. BF & ZF series modified phenolic base, made of imported Evan foil, totally enclosed structure; it can realize temperature (or elastic modulus) self compensation and creep self compensation at the same time; the accuracy and stability are the same as BF series products, with high resistivity and sensitivity coefficient. Through heat treatment, the temperature characteristics of sensitivity coefficient can be adjusted, so that it can be used in elastic modulus self compensation sheet, suitable for making 0.03 ~ 0.05 grade non external compensation sheet Sensor. BKM: it is made of Kang copper foil and peek film, totally closed structure; it can realize temperature (or elastic modulus) self compensation and creep self compensation at the same time; it has extremely low moisture absorption rate and good resistance to humidity and heat, and is suitable for C3 level high-precision sensor.

Nomenclature of strain gauge models

TECHNOLOGY PARAMETERS
