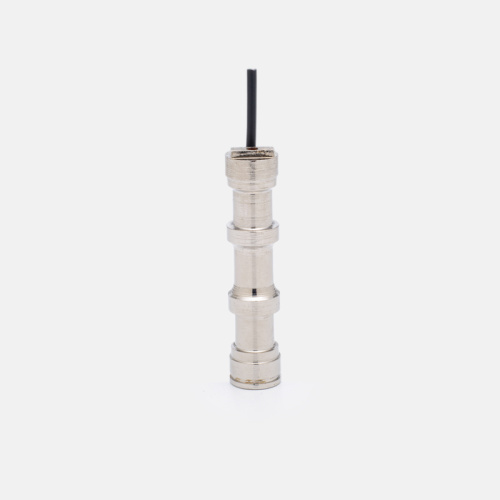

NH6T2 Pin type force sensor

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

A pin type force sensor is a device for measuring force, which determines the magnitude of the applied force by measuring the magnitude of the axial force. The sensor is usually composed of a bearing and a force measuring element, which can be a Strain gauge, piezoelectric crystal or other types of sensors. When an axial force is applied, it is converted into strain or electrical signals inside the sensor, which can then be amplified and processed through appropriate circuits to obtain the value of the applied force.

Axis pin force sensors can be widely used in many fields, including industrial automation, mechanical equipment, aerospace, automotive engineering, medical equipment, and so on.

Features:

Range: 200KG

Suitable for ropes, shackles, bearing seats, and other specialized scales

Structure: Alloy steel, pivot pin structure

Appearance: waterproof and sealed

Technical parameter table:

PARAMETERS
Sensor Range	KG	200	Rated load
Comprehensive error	FS	±0.1%	Comprehensive error
sensitivity	mv/v	1.0±0.2	Rated output
Zero point output	FS	±1%	Zero balance
creep	%FS/30min	±0.1	Creep
Zero temperature effect	%FS/10℃	±0.1	Temp.effect on zero
Sensitivity temperature influence	%FS/10℃	±0.1	Temp.effect on span
Nonlinear	%FS	±0.3	Non-Linearity
Hysteresis	%FS	±0.3	Hysteresis
Repeatability	%FS	±0.3	Repeatability
Input impedance	Ω	350±50	Input resistance
Output impedance	Ω	350±5	output resistance
insulation resistance	MΩ	≥5000(100V)	Insulation resistance
Temperature compensation range	℃	-10-40	Compensated temp.range
Operating temperature range	℃	-35-65	Use temp.range
Excitation voltage	V	5-12（DC）	Excitation voltage
Safe overload range	%	150	Safe overload
Protection level		IP65	Defend grade
wire	m	3米Φ3屏蔽线	Cable
