Locking Ring Stainless Steel

Get Latest Price

Min. Order:: 50 Piece/Pieces

Min. Order:: 50 Piece/Pieces

Transportation:: Ocean, Air

Port:: Yantian China

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C,T/T
Incoterm:	FOB
Certificate:	ISO9001
Transportation:	Ocean,Air
Port:	Yantian China

Product Description

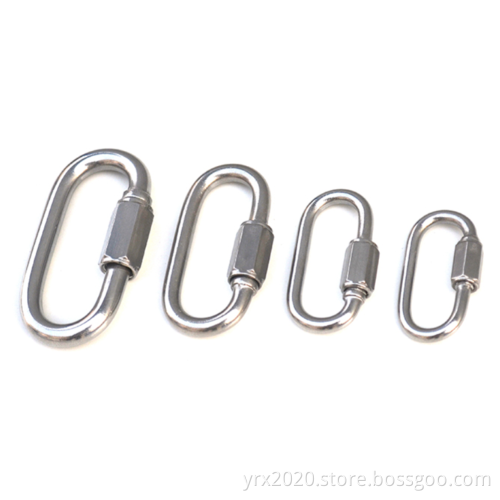

Locking Ring Stainless Steel

The Locking Ring Stainless Steel belongs to connecting parts. (Click here for showing the product Diving Hook Double Ended.) We produce a whole series of parts to ensure a perfect fit for every product. (Click here for showing the product Bolt Snap Hook Half Round Base.) The parts are made from grade AISI 304 or AISI 316 stainless steel for maximum corrosion resistance and durability. We can also provide parts made of carbon steel with plating. (Click here for showing the product Spring Snap Hook.) The parts are rustproof, tough, strong, secure, reliable, durable. It is ideal for household, marine, industrial, rigging and webbing applications. (Click here for showing the product Quick Link.)

We produce ODM and OEM products. All materials are Rohs and REACH compliance. Please don't hesitate to contact us for details, drawings, and quotes.

Drawing

locking ring

Size Table

B ( mm / inch )	A ( mm / inch )	C ( mm / inch )	D ( mm / inch )	WLL ( Work Load Limit )
3.5 / 0.1378"	36 / 1.4173"	10 / 0.3937"	5 / 0.1969"	180 kgs / 400 lbs
4 / 0.1575"	40 / 1.5748"	11.5 / 0.4528"	5.4 / 0.2126"	220 kgs / 500 lbs
5 / 0.1969"	48.5 / 1.9094"	13 / 0.5118"	6.5 / 0.2559"	320 kgs / 700 lbs
6 / 0.2362"	57 / 2.2441"	14.5 / 0.5709"	7.5 / 0.2953"	400 kgs / 900 lbs
7 / 0.2756"	67 / 2.6378"	16.5 / 0.6496"	8 / 0.3150"	550 kgs / 1200 lbs
8 / 0.3150"	74 / 2.9134"	17.5 / 0.6890"	10 / 0.3937"	680 kgs / 1500 lbs
9 / 0.3543"	83.5 / 3.2874"	19 / 0.7480"	11 / 0.4331"	860 kgs / 1900 lbs
10 / 0.3937"	90 / 3.5433"	20.5 / 0.8071"	12 / 0.4724"	1050 kgs / 2300 lbs
12 / 0.4724"	104.5 / 4.1142"	22.5 / 0.8858"	15 / 0.5906"	1140 kgs / 2500 lbs
