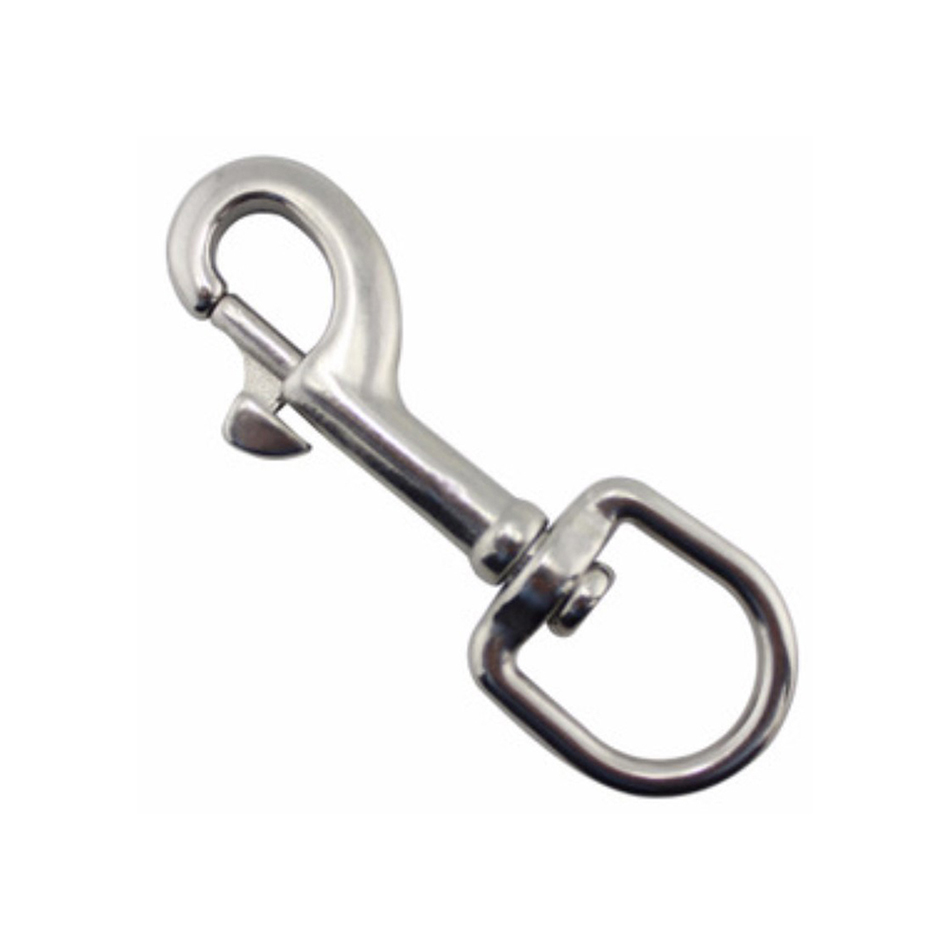

Bolt Snap Hook Half Round Base Swivel SS

Bolt Snap Hook Half Round Base

The Bolt Snap Hook Half Round Base belongs to connecting parts.
(Click here to show the product Diving Hook Double Ended.)
The hook is 360-degree-tangle free. Its base is half round.
(Click here to show the product Quick Link.)
The hook can be made of stainless steel 304, 316, or Zinc casting with plating. The color can be silver or black. The surface is smooth, shiny, and high gloss.
(Click here to show the product Bolt Snap Hook Half Round Base.)
The part is durable, reliable, strong, secure, rustproof, tough. It is being widely used on bags, carabiners, riggings, industrial, household, commercial, marine, etc.
(Click here to show the product Spring Snap Hook.)

We make ODM and OEM products. All materials are Rohs and REACH compliance. Please don't hesitate to contact with us for asking for details, drawings and quoting.

Drawing

Size Table

    A ( mm / inch )                B ( mm / inch )                  C ( mm / inch )                     D (mm / inch )

      11.5 / 0.4528"                    3.5 / 0.1378"                         9 / 0.3543"                          60 / 2.5984"

      13.5 / 0.5315"                    4.0 / 0.1575"                      9.5 / 0.3740"                          73 / 2.8740"

      17.5 / 0.6890"                    4.5 / 0.1772"                       10 / 0.3937"                          84 / 3.3071"

      21.5 / 0.8465"                      5 / 0.1969"                        11 / 0.4331"                          92 / 3.6220"

      26.5 / 1.0433"                   5.5 / 0.2165"                        12 / 0.4724"                         101 / 3.9764"

        34 / 1.3386"                      6 / 0.2362"                        14 / 0.5512"                         127 / 5.0000"
