Strong Shackle for Lifting
  • Strong Shackle for Lifting
  • Strong Shackle for Lifting
Strong Shackle for Lifting
Strong Shackle for Lifting

Strong Shackle for Lifting

Get Latest Price
Min. Order:
50 Piece/Pieces
Min. Order:
50 Piece/Pieces
Transportation:
Ocean, Air
Port:
Yantian China
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Payment Type: L/C,T/T
Incoterm: FOB
Certificate: ISO9001
Transportation: Ocean,Air
Port: Yantian China
Product Description
Product Description

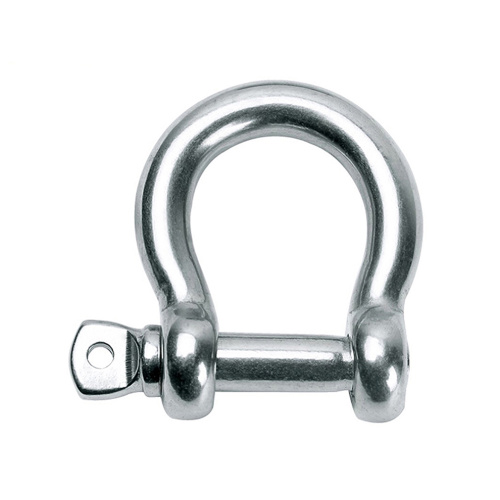

Strong Shackle for Lifting

The Strong Shackle for Lifting belongs to the Carabiner Shackle Clamp Clasp. (Show the product Durable Metal Carabiner Clip.) Strong Shackle for Lifting is one of the indispensable connecting parts in lifting, towing, and other industries. It is also often used in rock climbing, rigging, diving, skydiving, outdoor sports, and other industries. (Show the product Carabiner Bolt Snap Hook.) For these types of parts, safety and reliability are paramount. The opening of the part is closed with a screw pin, which eliminates the potential risk of disengagement. (Show the product Strong Shackle for Lifting.) The use of stainless steel material makes the parts strong, durable, and rustproof. Our parts are fully capable of handling harsh working environments. (Show the product Key Chain Spring Snap Hook.) A full range of sizes is available for customers to choose from. In addition to the existing shapes, the shape of the parts can be customized according to customer requirements. If you need, please feel free to contact us. (Show the product Double Wire Clamp Cable Clip.)


We produce ODM and OEM products. All materials are Rohs and REACH compliance. Please don't hesitate to contact us for details, drawings, and quotes.

clamp pliers


Drawing

Thread M in drawing is same as dimension C.

clamp on amp meter

Size Table


C (mm / inch) W (mm / inch) F (mm / inch) D (mm / inch) H (mm / inch)

WLL

Work Load Limit

(kgs / lbs)

NW

Net Weight

(kgs / lbs)

 4 / 0.1575"
 8 / 0.3150"
 12 / 0.4724"
 9 / 0.3543"
 16 / 0.6299”
 120 / 260
 0.008 / 0.018
5 / 0.1969"
 10 / 0.3937"
 15 / 0.5906"
 11 / 0.4331"
 17 / 0.6693”
 200 / 440
 0.015 / 0.033
6 / 0.2362"
 12 / 0.4724"
 20 / 0.7874"
 12 / 0.4724"
 23 / 0.9055”
 300 / 660
 0.026 / 0.057
8 / 0.3150"
 16 / 0.6299"
 26 / 1.0236"
 16 / 0.6299"
 32 / 1.2598”
 500 / 1100
 0.062 / 0.136
10 / 0.3937"
 21 / 0.8268"
 30 / 1.1811"
 20 / 0.7874"
 35 / 1.3780”
  800 / 1760
 0.111 / 0.244
12 / 0.4724"
 25 / 0.9843"
 35 / 1.3780"
 24 / 0.9449"
 38 / 1.4961”
 1000 / 2200
 0.189 / 0.416
14 / 0.5512"
 28 / 1.1024”
 43 / 1.6929”
 28 / 1.1024”
 48 / 1.8898”
 1500 / 3300
 0.310 / 0.682
 16 / 0.6299"
 33 / 1.2992”
 48 / 1.8898”
 32 / 1.2598”
 55 / 2.1654”
 2000 / 4400
 0.462 / 1.016
 18 / 0.7087"
 36 / 1.4173"
 52 / 2.0472”
 36 / 1.4173”
 63 / 2.4803”
 2500 / 5500
 0.668 / 1.470
20 / 0.7874"
 42 / 1.6535"
 65 / 2.5591”
 40 / 1.5748”
 75 / 2.9528”
 3000 / 6600
 0.936 / 2.059
22 / 0.8661"
 45 / 1.7717"
 67 / 2.6378”
 44 / 1.7323”
 77 / 3.0315”
 4000 / 8800
 1.180 / 2.596
25 / 0.9843"
 54 / 2.1260"
 78 / 3.0709”
 50 / 1.9685”
 87 / 3.4252”
 5000 / 11000
 1.618 / 3.560
28 / 1.1024"
 56 / 2.2047"
 86 / 3.3858"
 56 / 2.2047”
 98 / 3.8583”
 7000 / 15400
 2.288 / 5.034
32 / 1.2598"
 64 / 2.5197"
 94 / 3.7008”
 64 / 2.5197”
 112 / 4.4094”
 8000 / 17600
 3.333 / 7.333
38 / 1.4961"
 76 / 2.9921"
 100 / 3.9370”
 74 / 2.9134”
 130 / 5.1181”
 12000 / 26400
 5.928 / 13.042
