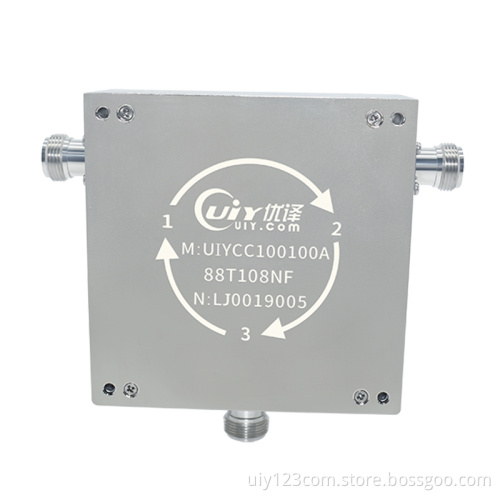

Telecom Parts VHF 88 to 108MHz RF Coaxial Circulators High Power 500W
-
$535.001-9 Piece/Pieces
-
$500.00≥10 Piece/Pieces
- Transportation:
- Land, Express
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen,China |
|---|---|
| Productivity: | 8000pcs/month |
| Supply Ability: | 8000pcs/month |
| Payment Type: | T/T |
| Incoterm: | CFR,EXW |
| Certificate: | RoHS |
| HS Code: | 8517799000 |
| Transportation: | Land,Express |
| Port: | Shenzhen |
| Model Number |
UIYCC100100A88T108NF |
|
Frequency Range |
88~108MHz |
| Bandwidth | 20% |
| Insertion Loss | 0.8dB |
| Isolation | 17dB |
| VSWR | 1.35 |
| Forward Power | 500W |
| Reverse Power | 500W |
| Connector Type | N-F |
| Temperature |
0~+70°C |
|

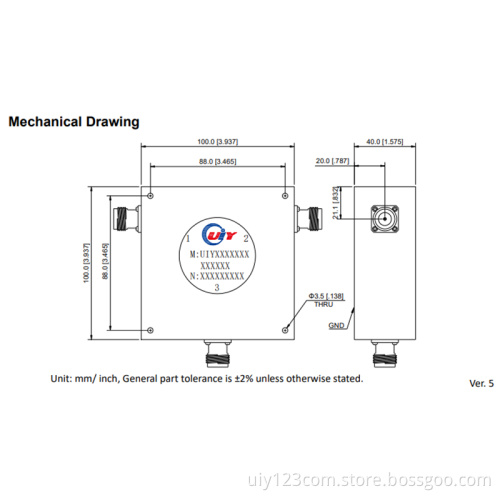

Dimension |
100*100*40mm |
