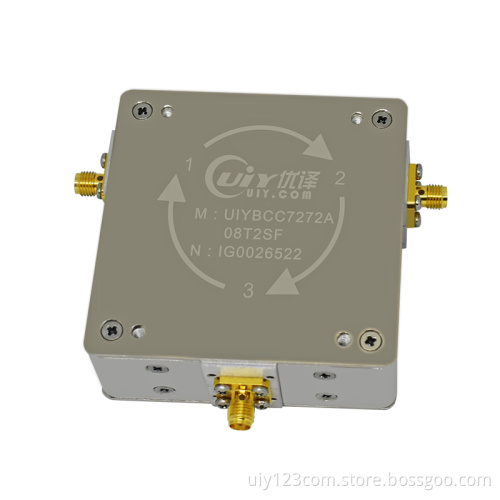

0.8 to 2.0GHz UHF Band RF Broadband Coaxial Circulator 100W SMA Female
-
$330.001-9 Piece/Pieces
-
$300.00≥10 Piece/Pieces
- Transportation:
- Express
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen,China |
|---|---|
| Productivity: | 1000pcs/month |
| Supply Ability: | 1000pcs/months |
| Payment Type: | T/T |
| Incoterm: | EXW |
| Certificate: | ROHS |
| HS Code: | 8517799000 |
| Transportation: | Express |
| Port: | Shenzhen |
Model Number: UIYBCC7272A08T2SF
Frequency Range: 0.8~2.0GHz
Insertion Loss:1.3dB
Isolation: 12dB
VSWR:1.6
Forward Power: 100W
Reverse Power: 100W
Connector Type: SMA-F
Temperature: +10~+70°C
Dimension:72*72*27.4mm
Frequency range 56MHz to 40 GHz, up to 2000W power.
Military, space and commercial applications.
Low insertion loss, high isolation, high power handling.
Custom design available upon request.
