UHF Band 600 to 900GHz RF Broadband Coaxial Circulator Insertion Loss 0.5dB
-
$220.001-9 Piece/Pieces
-
$200.00≥10 Piece/Pieces
- Transportation:
- Express
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen,China |
|---|---|
| Productivity: | 1000pcs/month |
| Supply Ability: | 1000pcs/months |
| Payment Type: | T/T |
| Incoterm: | EXW |
| Certificate: | ROHS |
| HS Code: | 8517799000 |
| Transportation: | Express |
| Port: | Shenzhen |

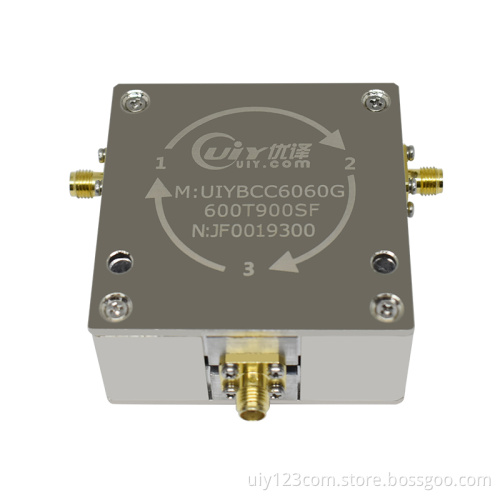

Model Number: UIYBCC6060G600T900SF
Frequency Range:600~900MHz
Insertion loss: 0.5dB
Isolation: 16dB
VSWR:1.4
Forward Power: 100W
Reverse Power: 100W
Connector Type: SMA-F
Temperature: 0~+60°C
Dimension: 60*60*26mm
Frequency range 56MHz to 40 GHz, up to 2000W power.
Military, space and commercial applications.
Low insertion loss, high isolation, high power handling.
Custom design available upon request.
