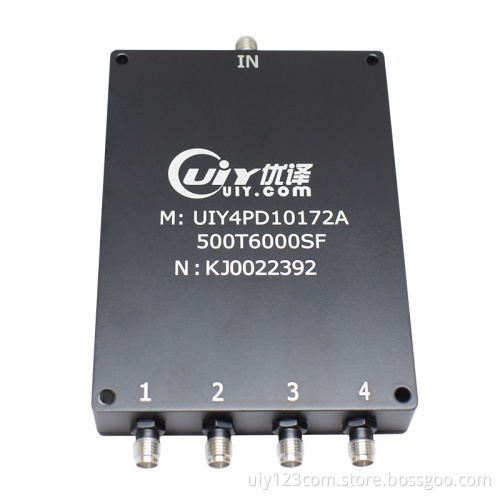

Singal Transmitter 500 to 6000MHz RF 4 Way Power Divider Splitter High Isolation 18dB
  • Singal Transmitter 500 to 6000MHz RF 4 Way Power Divider Splitter High Isolation 18dB
  • Singal Transmitter 500 to 6000MHz RF 4 Way Power Divider Splitter High Isolation 18dB
  • Singal Transmitter 500 to 6000MHz RF 4 Way Power Divider Splitter High Isolation 18dB
  • Singal Transmitter 500 to 6000MHz RF 4 Way Power Divider Splitter High Isolation 18dB
  • Singal Transmitter 500 to 6000MHz RF 4 Way Power Divider Splitter High Isolation 18dB
  • Singal Transmitter 500 to 6000MHz RF 4 Way Power Divider Splitter High Isolation 18dB
Singal Transmitter 500 to 6000MHz RF 4 Way Power Divider Splitter High Isolation 18dB
Singal Transmitter 500 to 6000MHz RF 4 Way Power Divider Splitter High Isolation 18dB
Singal Transmitter 500 to 6000MHz RF 4 Way Power Divider Splitter High Isolation 18dB
Singal Transmitter 500 to 6000MHz RF 4 Way Power Divider Splitter High Isolation 18dB
Singal Transmitter 500 to 6000MHz RF 4 Way Power Divider Splitter High Isolation 18dB
Singal Transmitter 500 to 6000MHz RF 4 Way Power Divider Splitter High Isolation 18dB

Singal Transmitter 500 to 6000MHz RF 4 Way Power Divider Splitter High Isolation 18dB

  • $130.00
    1-9 Piece/Pieces
  • $120.00
    ≥10 Piece/Pieces
Transportation:
Express
Port:
Shenzhen
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: Shenzhen, China
Productivity: 2000pcs/month
Supply Ability: 2000pcs/month
Payment Type: T/T,Paypal
Incoterm: CFR,EXW
Certificate: RoHs
HS Code: 8517799000
Transportation: Express
Port: Shenzhen
Product Description
Product Description
Model Number UIY4PD10172A500T6000SF
Frequency Range
 500~6000MHz
Insertion Loss
 2.5dB(Split 6dB)
Isolation
 18dB
VSWR Input
 1.5
VSWR Output
 1.5
Phase Unbalance
 ±6˚
Amplitude Unbalance
 ±1.0dB
Forward Power
 10W
Reverse Power
 3W
Connector Type
 SMA-F
Temperature
 -35~+65°C
Dimension
 72.5*101*15.5mm

Military, space and commercial applications.

Electronic Musical Instrument Public Address System Radio Set Biomedical Instrumentation Optical Communication Technology Wireless Infrastructure Microwave Subsystems 2G 3G 4G 5G

GSM CDMA LTE NR


UIY Inc. provide Low insertion loss, high isolation, high power handling on RF Module. Exceptional customer service and technical support are on hand to support our customers.


Since 2003, UIY Inc. has become a critical supplier and partner to major companies serving the Aerospace, Military, Radar, Defense, Medical, Communications and Specialty Test industries.

UIY's product offerings include RF Isolators, RF Circulators, RF Filters, Power Divider / Splitter, Duplexer/Triplexer, Hybridge Combiner, Coaxial Termination, Coaxial Attenuator, Directional Coupler, Waveguide to Coaxial Adapter.

We offer cost-effective customized solutions in a wide range of RF and Microwave Components and Subsystems.

Advantages:
we offer - ROHS Compliant
we offer - HFSS Simulation
we guarantee - One Year warranty
we guarantee - Fast Delivery
we support - Contract Manufacturing
