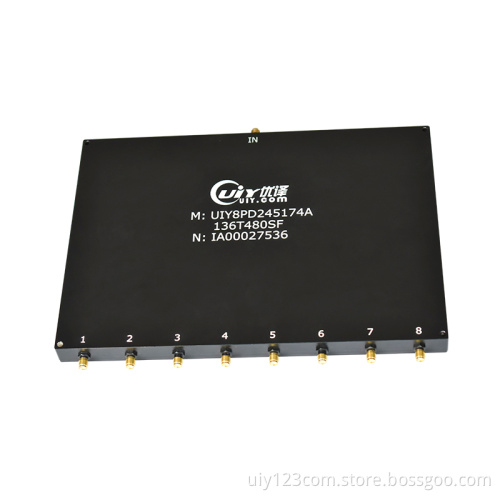

VHF UHF Band 136~480MHz RF 8 Way Power Divider Splitter For Radio Communication
-
$300.001-9 Piece/Pieces
-
$270.00≥10 Piece/Pieces
- Transportation:
- Express, Ocean, Land
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen,China |
|---|---|
| Productivity: | 1000pcs/week |
| Supply Ability: | 1000pcs/week |
| Payment Type: | T/T,Paypal |
| Incoterm: | CFR,EXW |
| Certificate: | ROHs |
| HS Code: | 8517799000 |
| Transportation: | Express,Ocean,Land |
| Model Number | UIY8PD245174A136T480SF |
| Frequency Range | 136~480MHz |
| Insertion loss | 0.8dB(Split 9dB) |
| Isolation | 18dB |
| VSWR Input | 1.5 |
| VSWR Output | 1.4 |
| Phase Unbalance |
±8˚ |
| Amplitude Unbalance | ±0.8dB |
| Forward Power | 20W |
| Reverse Power | 3W |
| Connector Type | SMA-F |
| Temperature | -30~+70°C |
| Dimension | 245.5*174*16.5mm |
-
