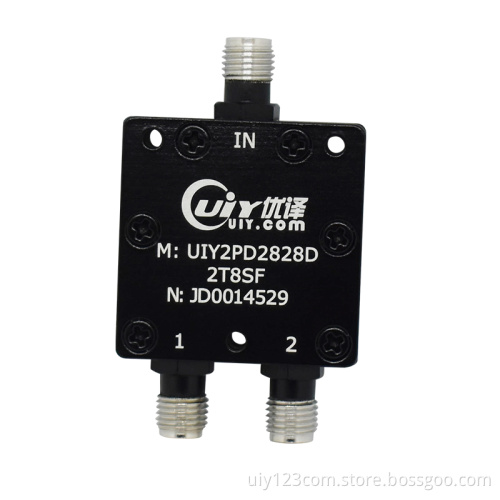

S C Band 2.0~8.0GHz RF 2 Way Power Divider Splitter For Satcom System
-
$140.001-9 Piece/Pieces
-
$120.00≥10 Piece/Pieces
- Transportation:
- Express, Ocean, Land
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen,China |
|---|---|
| Productivity: | 1000pcs/week |
| Supply Ability: | 1000pcs/week |
| Payment Type: | T/T,Paypal |
| Incoterm: | CFR,EXW |
| Certificate: | ROHs |
| HS Code: | 8517799000 |
| Transportation: | Express,Ocean,Land |
|
Model Number |
UIY2PD2828D2T8SF |
|
Frequency Range |
2.0~8.0GHz |
|
Insertion Loss |
0.7dB (Split 3dB) |
|
Isolation |
20dB |
|
VSWR Input |
1.3 |
|
VSWR Output |
1.3 |
|
Phase Unbalance |
±4˚ |
|
Amplitude Unbalance |
±0.3dB |
|
Forward Power |
30W |
| Reverse Power | 3W |
|
Connector Type |
SMA-F |
|
Temperature |
-55 ~ +85°C |
|
Dimension |
28*28*10mm |
