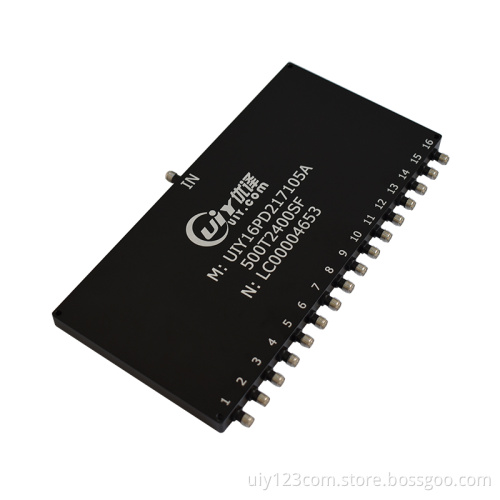

UHF 500~2400MHz RF 16 Way Power Divider SMA Female
-
$220.001-9 Piece/Pieces
-
$200.00≥10 Piece/Pieces
- Transportation:
- Air, Express
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen,China |
|---|---|
| Productivity: | 1000pcs/week |
| Supply Ability: | 1000pcs/week |
| Payment Type: | T/T |
| Incoterm: | CFR,EXW |
| Certificate: | ROHs |
| HS Code: | 8517799000 |
| Transportation: | Air,Express |
Model Number: UIY16PD217105A500T2400SF
Frequency Range:500~2400MHz
Insertion Loss:2.3dB (split 12)
Isolation:18dB
VSWR:1.5
Phase Unbalance:±12°
Amplitude Unbalance:±0.7dB
Forward Power:10W
Reverse Power:3W
Connector Type: SMA-F
Temperature: -55~+85℃
Dimension:217*105*11mm
Frequency range 70MHz to 40 GHz.
Military, space and commercial applications.
Low insertion loss, high isolation, high power handling.
Custom design available upon request.
