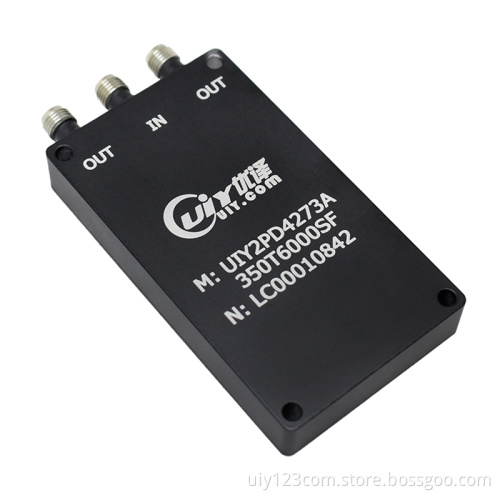

UHF 350~6000MHz RF 2 Power Divider 2 Output 1 Input
-
$170.001-9 Piece/Pieces
-
$150.00≥10 Piece/Pieces
- Transportation:
- Air, Express
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen,China |
|---|---|
| Productivity: | 1000pcs/week |
| Supply Ability: | 1000pcs/week |
| Payment Type: | T/T |
| Incoterm: | CFR,EXW |
| Certificate: | ROHs |
| HS Code: | 8517799000 |
| Transportation: | Air,Express |
Model Number: UIY2PD4273A350T6000SF
Frequency Range: 350~6000MHz
Insertion Loss:1.8dB (split 3dB)
Ripple:1.2
Isolation:16dB
VSWR:1.5
Phase Unbalance:±5°
Amplitude Unbalanced: ±0.4dB
Forward Power:25W
Reverse Power:1W
Connector Type: SMA-F
Temperature: -55~+85℃
Dimension:42*73.5*11.5mm
Frequency range 70MHz to 40GHz.
Military, space and commercial applications.
Low insertion loss, high isolation, high power handling.
Custom design available upon request.
