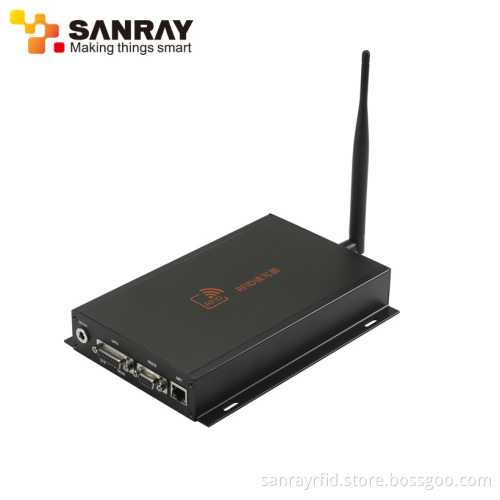

Active Anti-collision Rfid Reader for Employee Tracking
- Payment Type:
- L/C, T/T, D/P, Paypal, Western Union
- Incoterm:
- FOB, CFR, CIF, EXW, CIP
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | L/C,T/T,D/P,Paypal,Western Union |
|---|---|
| Incoterm: | FOB,CFR,CIF,EXW,CIP |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
Typical Applications:
Intelligent transportation management;
Asset identification, tracking and checking management;
Orientation, tracking and checking people in coal mine etc.;
Position monitor management for baby, prisoner, older psychotic etc..
|
Technology specifications |
|
|
Operating frequency |
2.4GHz~2.5GHz ISM |
|
Antenna |
Connect 1 antenna through SMA |
|
RF power range |
-30dBm~0.0dBm( adjusted by 32 grade ) |
|
Receiving sensitivity |
-90.0dBm |
|
Operating mode |
Fixed frequency |
|
Modulation |
GFSK |
|
Reading range |
☆ 0~100m (depend on different gain omni-directional antenna,) |
|
Anti-collision |
Up to 1000 tags read simultaneously |
|
Communication speed |
250kbps, 1Mbps, 2Mbps(adjustable) |
|
Communication interface |
RS-232, RS-485, Wiegand26/34/42/50, Ethernet |
|
Input and output |
2 input, 2 output |
|
Power supply |
AC input: 100~240V, 50/60Hz 1.2A |
|
Product size |
208mm×125mm×35mm(L×W×H) |
|
Gross weight |
0.79kg |
|
Net weight |
0.75kg |
|
Working temperature |
-20℃~+70℃ |
|
Storage temperature |
-40℃~+85℃ |
|
Accessories |
Standard matched antenna, Power adapter, Power cable, RS-232 cable, USB cable, Ethernet cable |
|
Working status indication |
Buzzer, LED indicator |
