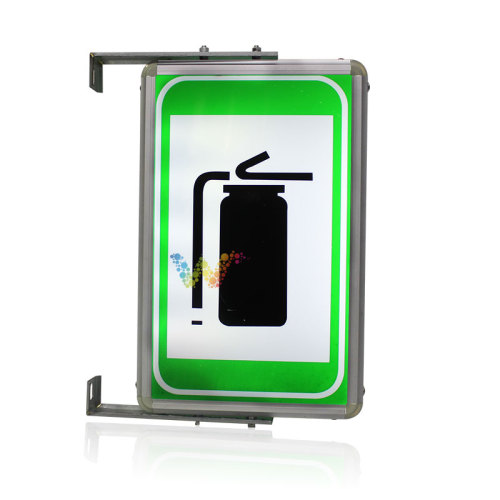

Tunnel emergency electro-optic indicator led traffic sign
- Payment Type:
- T/T, Paypal, Money Gram, Western Union
- Incoterm:
- EXW
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | guangdong |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | stock |
| Payment Type: | T/T,Paypal,Money Gram,Western Union |
| Incoterm: | EXW |
| Certificate: | CE/ROHS |
| HS Code: | 8530800000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
Model number:WDM-DG-800*500-01
Size: 400*250*50mm/800*500*50mm/800*500*70mm(Customized)
Installation:L-shaped bracket installation
Voltage: AC85-265Vvisual distance: >800m
installation: L-shaped bracket installation
Housing Material: Aluminum
working mode: led light
Certificate: CE,ROhs
LED Color: White
warranty: 2 years
lifespan: 3-5years
Product details for the Tunnel emergency electro-optic indicator led traffic sign:
1.Brand lamp beads, built-in light, the pattern on the double-sided sign can be customized.
2.A storage battery is installed in the box. When the power is suddenly cut off, the electro-optical sign can still glow and continue to work.
3.The cabinet is made of aluminum, which has good oxidation resistance, and the equipment will not fade or rust during use.
4.The L-shaped brackets are fixed on the walls on both sides of the tunnel with screws at the upper and lower ends of the electro-optical sign, which is easy to install.
Installation for the Tunnel emergency electro-optic indicator led traffic sign:
L-shaped bracket installation:
The upper and lower ends of the sign plate are equipped with small screws. Remove the nuts, washers, and shrapnel from the small screw, put the end of the L-shaped bracket with more holes on the small screw, and then set the shrapnel, washer, and nuts on the L-shaped bracket Tighten the top to install the L-shaped bracket. Drill holes on the tunnel wall according to the distance between the L-shaped brackets on the two ends of the sign, and install the sign. The following is an example of a sign with a size of 400*250mm, and the distance between the mounting holes of the two L-shaped brackets is 360mm.
washers, and shrapnel from the small screw, put the end of the L-shaped bracket with more holes
on the small screw, and then set the shrapnel, washer, and nuts on the L-shaped bracket Tighten
the top to install the L-shaped bracket. Drill holes on the tunnel wall according to the distance
between the L-shaped brackets on the two ends of the sign, and install the sign. The following is
an example of a sign with a size of 400*250mm, and the distance between the mounting holes of
the two L-shaped brackets is 360mm.

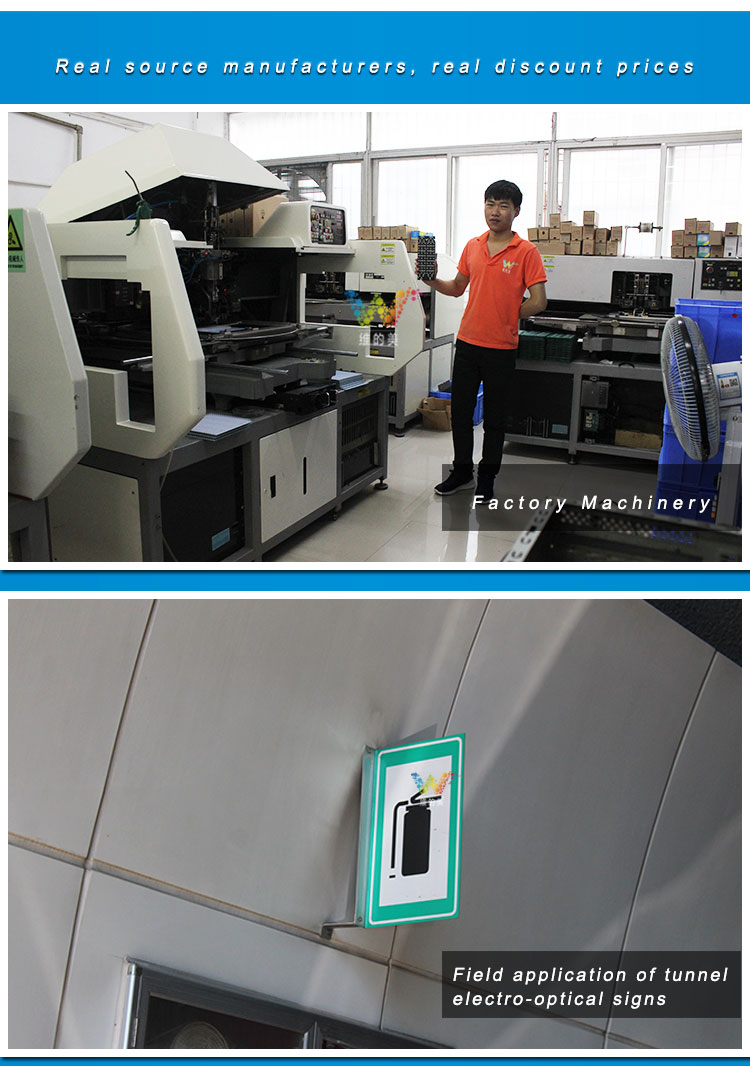

Application for the Tunnel emergency electro-optic indicator led traffic sign
In addition to the Tunnel emergency electro-optic indicator led traffic sign, Shenzhen Wide Way Optoelectronics Co., Ltd. also produces the following other models of traffic sign.
Solar Power Guidance Traffic Road Sign
Solar Led Guidance Sign
Highway Speed Limit Signs
Speed Limit Signs
Led Speed Radar Sign
Traffic Led Display Screen
Solar Guidance Sign
