Toll station single side green arrow traffic lights
- Payment Type:
- T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- EXW
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | guangdong |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | stock |
| Payment Type: | T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | EXW |
| Certificate: | CE/ROHS |
| HS Code: | 8530800000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
Product Description
Product Description

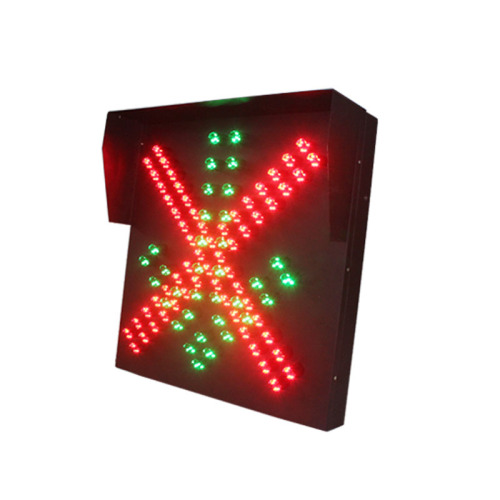

Brief introduction of 600mm Toll station single side green arrow traffic lights:
The 600 type single-sided red fork green arrow is made of cold-rolled board material, can be hoisted, installed on the side, with sunshade, complete accessories, lamp beads using Taiwan Epistar chip, dedicated to highway toll stations, tunnel lights. Shenzhen Videmei Optoelectronics Co., Ltd. is a professional manufacturer of 600 single-sided red cross green arrows. The company produces different styles and different models of single-sided red cross green arrows. Welcome to inquire about 600 single-sided red cross green arrows. information.
The parameter list of 600mm Toll station single side green arrow traffic lights:
1. Product size: 600*600*70mm (6R4G)
2. Number of lamp beads: 6 red/tube 4 green/tube
3. Number of pixel tubes: 60 red and 34 green
4. Lamp beads category: Taiwan Epistar chip lamp beads
5. Red wavelength: 620-625NM
6. Green wavelength: 500-505NM (blue-green) 520-525NM (emerald green)
7. Working voltage: AC85V-265V
8. Service life: 100000H
9. Shell material: electrostatic spraying, sheet metal chassis
10. Visual distance: ≥1000M
11. Working temperature: -40℃-65℃
12. Protection level: IP65
13. Rated power: red 15W green 18W
2. The bottom of the 600mm Toll station single side green arrow traffic lights adopts a waterproof connector for outlet, which improves the waterproof ability of the product.
3.600mm Toll station single side green arrow traffic lights adopts an assembled design, which is simple and convenient to install.
4. The shell of the 600mm Toll station single side green arrow traffic lights arrow is made of cold-rolled plates. The cold-rolled plates have good surface quality, good stamping performance, and excellent processing characteristics. Products made of cold-rolled plates are durable and have a long service life.
1. Align the trapezoidal bracket with the holes on both sides of the lamp,
2. Pass the M4 screw through the trapezoidal bracket
3. Finally, tighten the screws
1. Align the holes on the L-shaped bracket with the holes on the side M12
2. Set the gasket into the M12 screw
3. Pass the screw through the L-shaped bracket
4. Finally, tighten the screws
1. Green line: green arrow signal line
2. Red line: red cross signal line
3. Black line: zero line
4. Yellow wire: ground wire
Solar Guidance Signs
Solar Power Guidance Traffic Road Sign
Solar Led Guidance Sign
Highway Speed Limit Signs
Speed Limit Signs
Led Speed Radar Sign
Traffic Led Display Screen
The 600 type single-sided red fork green arrow is made of cold-rolled board material, can be hoisted, installed on the side, with sunshade, complete accessories, lamp beads using Taiwan Epistar chip, dedicated to highway toll stations, tunnel lights. Shenzhen Videmei Optoelectronics Co., Ltd. is a professional manufacturer of 600 single-sided red cross green arrows. The company produces different styles and different models of single-sided red cross green arrows. Welcome to inquire about 600 single-sided red cross green arrows. information.
The parameter list of 600mm Toll station single side green arrow traffic lights:
1. Product size: 600*600*70mm (6R4G)
2. Number of lamp beads: 6 red/tube 4 green/tube
3. Number of pixel tubes: 60 red and 34 green
4. Lamp beads category: Taiwan Epistar chip lamp beads
5. Red wavelength: 620-625NM
6. Green wavelength: 500-505NM (blue-green) 520-525NM (emerald green)
7. Working voltage: AC85V-265V
8. Service life: 100000H
9. Shell material: electrostatic spraying, sheet metal chassis
10. Visual distance: ≥1000M
11. Working temperature: -40℃-65℃
12. Protection level: IP65
13. Rated power: red 15W green 18W
Features of Model 600mm Toll station single side green arrow traffic lights:
1.600mm Toll station single side green arrow traffic lights uses Taiwan Epistar chip lamp beads, high brightness, high refresh rate, and long service life.2. The bottom of the 600mm Toll station single side green arrow traffic lights adopts a waterproof connector for outlet, which improves the waterproof ability of the product.
3.600mm Toll station single side green arrow traffic lights adopts an assembled design, which is simple and convenient to install.
4. The shell of the 600mm Toll station single side green arrow traffic lights arrow is made of cold-rolled plates. The cold-rolled plates have good surface quality, good stamping performance, and excellent processing characteristics. Products made of cold-rolled plates are durable and have a long service life.
Installation method of 600mm Toll station single side green arrow traffic lights:
1>Installation method of sun visor:1. Align the trapezoidal bracket with the holes on both sides of the lamp,
2. Pass the M4 screw through the trapezoidal bracket
3. Finally, tighten the screws
The sun visor installation method is the same as the trapezoidal bracket installation method
2>Installation method of L-shaped bracket:1. Align the holes on the L-shaped bracket with the holes on the side M12
2. Set the gasket into the M12 screw
3. Pass the screw through the L-shaped bracket
4. Finally, tighten the screws
Connection mode of 600mm Toll station single side green arrow traffic lights:
Connect to AC220V:1. Green line: green arrow signal line
2. Red line: red cross signal line
3. Black line: zero line
4. Yellow wire: ground wire
5. Wiring: AC220V
