Road safety 22 intersection traffic signal light controller
- Payment Type:
- T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- EXW
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | guangdong |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | stock |
| Payment Type: | T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | EXW |
| Certificate: | CE/ROHS |
| HS Code: | 8530800000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
Product Description
Product Description
Road safety 22 intersection traffic signal light controller

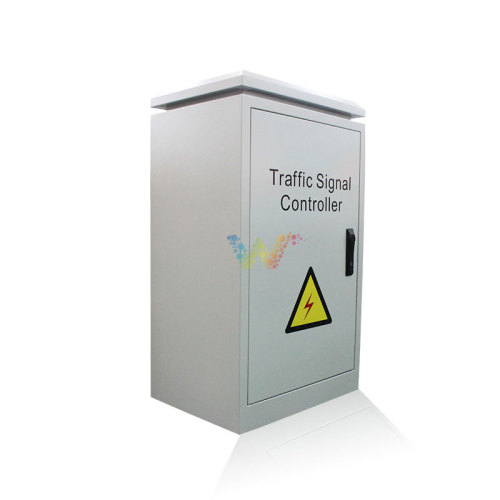

The traffic signal controller has a metal cabinet, the waterproof function is very good. The version can be customized by the customer.at present we have Chinese Version and English version.
22 intersection led indicator lamp traffic signal controller
Product Name:Road safety 22 intersection traffic signal light controller
Product size:950*550*400MM
Waterproof: IP55
Application:22 intersection
Wave length:red /yellow:4000-5000mcd, green
Life span:3-5 years
NET Weight: 42KG
Warranty: 2years
Working temperature:-40℃--+50℃
Product parameters for the Road safety 22 intersection traffic signal light controller:
Shell material: metal shell.
Dimensions: WDM-XHJ-22.
Output current: 3A per channel, total current ≤ 20A.
Voltage:AC85-265V
Static power consumption: <0.4W.
Output port: 22 channels.
Time period: One day can be divided into 12 time slots, and any plan can be called.
Scheme: 18 schemes, 8 fixed schemes, 10 custom schemes, including yellow flash, full red, and off lights.
Phase: Each scheme supports a maximum of 12 phases, that is, 12 steps, and the phase time that does not need to be displayed is set to zero.
Phase time: also called step size, 0~99 seconds can be set.
Strobe setting: yellow flash, pedestrian green light flashes 0~99 seconds, mobile green light flashes 0~99 seconds
Brightness dimming: 100%, 75%, 50%, 30%, automatic
Working temperature: -35 ° C ~ 75 ° C
Working humidity: ≤95%
Implementation standards: refer to the relevant provisions of GB25280-2010
The details about the Road safety 22 intersection traffic signal light controller
1.The traffic signal controller has a metal cabinet, the waterproof function is very good.
The traffic signal controller has a metal cabinet, the waterproof function is very good. The version can be customized by the customer.at present we have Chinese Version and English version.
22 intersection led indicator lamp traffic signal controller
Product Name:Road safety 22 intersection traffic signal light controller
Product size:950*550*400MM
Waterproof: IP55
Application:22 intersection
Wave length:red /yellow:4000-5000mcd, green
Life span:3-5 years
NET Weight: 42KG
Warranty: 2years
Working temperature:-40℃--+50℃
Product parameters for the Road safety 22 intersection traffic signal light controller:
Shell material: metal shell.
Dimensions: WDM-XHJ-22.
Output current: 3A per channel, total current ≤ 20A.
Voltage:AC85-265V
Static power consumption: <0.4W.
Output port: 22 channels.
Time period: One day can be divided into 12 time slots, and any plan can be called.
Scheme: 18 schemes, 8 fixed schemes, 10 custom schemes, including yellow flash, full red, and off lights.
Phase: Each scheme supports a maximum of 12 phases, that is, 12 steps, and the phase time that does not need to be displayed is set to zero.
Phase time: also called step size, 0~99 seconds can be set.
Strobe setting: yellow flash, pedestrian green light flashes 0~99 seconds, mobile green light flashes 0~99 seconds
Brightness dimming: 100%, 75%, 50%, 30%, automatic
Working temperature: -35 ° C ~ 75 ° C
Working humidity: ≤95%
Implementation standards: refer to the relevant provisions of GB25280-2010
The details about the Road safety 22 intersection traffic signal light controller
1.The traffic signal controller has a metal cabinet, the waterproof function is very good.
2.The version can be customized by the customer.at present we have Chinese Version and English version.
In addition for the Road safety 22 intersection traffic signal light controller,we also do othe traffic signal controller:
Traffic Signal Controller
Led Traffic Signal Controller
Intersection Traffic Signal Controller
LED Wired Road Stud Controller
Wired Road Stud Controller
Road Stud Controller
Remote Control Traffic Light Controller
Intelligent Traffic Light Controller
Led Traffic Light Controller
