400mm car wash equipment traffic light
- Payment Type:
- T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- EXW
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | guangdong |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | stock |
| Payment Type: | T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | EXW |
| Certificate: | CE/ROHS |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
Features of 400mm car wash equipment traffic light:
1. The 400mm car wash equipment traffic light uses Taiwan Epistar chip beads, high brightness, high refresh rate, and long service life.
2. The back of the 400mm car wash equipment traffic light is installed with a hoop, which is simple and convenient to install.
3. The 400mm car wash equipment traffic light adopts ultra-thin design, light weight, novel structure and beautiful appearance.
4.400mm car wash equipment traffic light adopts module quick assembly, maintenance and replacement parts are extremely fast.
5. 400mm car wash equipment traffic light require no additional power supply and can be wired directly from the traffic signal.
6. 400mm car wash equipment traffic light has a variety of installation methods to adapt to different installation environments, construction and installation is extremely simple.
7. The unique optical system of the 400mm car wash equipment traffic light has a large viewing angle, uniform chromaticity, and a long viewing distance.
8. 400mm car wash equipment traffic light have multiple seals, waterproof, dustproof, vibration resistant, low power consumption and long life.
400mm car wash equipment traffic light
The basic information of 400mm car wash equipment traffic light:
Product model: Wdm-XC400-RG
1. Product size: 400*400MM
2. Color of lamp beads: red and green
3. Lamp bead category: Taiwan Epistar chip lamp bead
4. Red wavelength: 620-625NM
5. Green wavelength: 520-525NM (emerald green)
6. Working voltage: DC12V/24V
7. Working temperature: -40℃~65℃
8. Protection level: IP65
9. Light angle: 30°
10. Visible distance: ≥1000M
11. Service life: 100000H

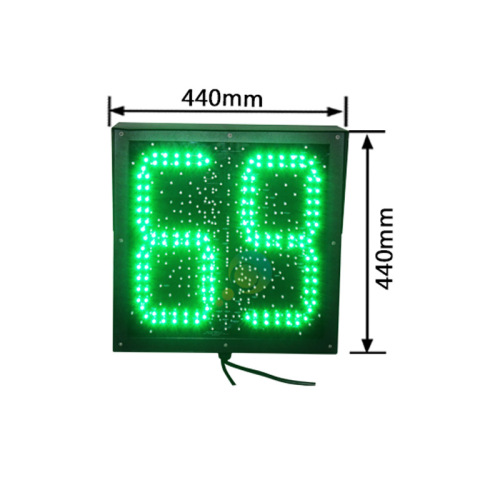

The physical picture of 400mm car wash equipment traffic light:
Wiring method of 400mm car wash equipment traffic light:
1. Connect the signal:
Black is the zero line;
Red is the red countdown;
Green is the green countdown;
Precautions:
1. Which direction to connect to the countdown, the corresponding direction should also be selected when the signal is connected (for example: if the countdown is connected straight, then the direction of the straight line should be selected when the signal is connected.
In addition to 400mm car wash equipment traffic light, Shenzhen Wide Way Optoelectronics Co., Ltd. also produces other types of traffic lights;
600*800MM double 8 countdown;
600mm single 8 countdown and so on
300mm traffic light countdown timer
