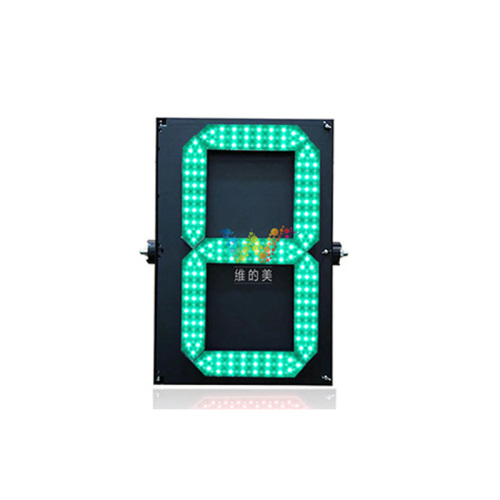

Single 8 large 400mm led countdown timer
- Payment Type:
- T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- EXW
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | guangdong |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | stock |
| Payment Type: | T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | EXW |
| Certificate: | CE/ROHS |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
Product Description
Product Description
Single 8 large 400mm led countdown timer parameter details:
1. Product model: WDM-DJS400-RG
2. Product size: 400*600*120MM
3. Number of lamp beads: 224 red, 168 green
4. Lamp bead color: red/green
5. Lamp beads category: Taiwan Epistar chip lamp beads
6. Red wavelength: 620-625NM
7. Green wavelength: 520-525NM
8. Yellow wavelength: 590-595NM
9. Service life: 100000H
10. Light angle: 30°
11. Shell material: PC
12. Working temperature: -40℃-65℃
13. Working voltage: AC220V
14. Visible distance: ≥1000M
15. Working mode: signal control
16. Installation method: L-shaped bracket installation
Single 8 large 400mm led countdown timer features:
1. Single 8 countdown traffic light adopts Taiwan Epistar chip beads, high brightness, high refresh rate and long service life.
2. The back of the single 8 countdown traffic light is installed with an L-shaped bracket, which is simple and convenient to install.
3. Single 8 countdown traffic light adopts PC shell, ultra-thin design, light weight, novel structure and beautiful appearance.
4. The single 8 countdown traffic lights are quickly assembled using modules, and maintenance and replacement of parts are exceptionally fast.
5. The single 8 countdown traffic light does not need to be connected to another power supply, and can be connected directly from the traffic signal.
6. Single 8 countdown traffic light unique optical system, large viewing angle, uniform chromaticity, long viewing distance.
Single 8 large 400mm led countdown timer traffic light installation method:
Installation method:
1. There is a screw on both ends, unscrew the nut above the screw,
2. Put the flat end of the "L" type bracket on the screw according to the hole position and the clamping slot, and tighten the nut. (as the picture shows)
3. The sun visor is installed on the upper part of the lamp. The long sun visor is on the top of the lamp body and the short is on both sides. Tighten the screws with the corresponding holes.
4. Make two holes on the signal light rod, drill holes according to the signal L-bracket holes, use a suitable screw to pass through the light rod, and put the L-shaped bracket on the screw and fix it with the nut.
Single 8 large 400mm led countdown timerconnection method:
1. Red line-red R (red countdown)
2. Yellow line-yellow R (yellow countdown)
3. Green line-green R (green countdown)
3. Black line-public 220V neutral line
5. Connect to AC220V
6 Connect the other end of the wiring to the signal
In addition to the Single 8 large 400mm led countdown timer traffic lights, We also produces other traffic lights:
Traffic Fog Light
Solar Warning Light
Taxi Led Display
Solar Warning Flashing Sign
Solar Safety Signs
Solar Warning Sign
Solar Traffic Road Sign
Road Stud Reflectors
1. Product model: WDM-DJS400-RG
2. Product size: 400*600*120MM
3. Number of lamp beads: 224 red, 168 green
4. Lamp bead color: red/green
5. Lamp beads category: Taiwan Epistar chip lamp beads
6. Red wavelength: 620-625NM
7. Green wavelength: 520-525NM
8. Yellow wavelength: 590-595NM
9. Service life: 100000H
10. Light angle: 30°
11. Shell material: PC
12. Working temperature: -40℃-65℃
13. Working voltage: AC220V
14. Visible distance: ≥1000M
15. Working mode: signal control
16. Installation method: L-shaped bracket installation
Single 8 large 400mm led countdown timer features:
1. Single 8 countdown traffic light adopts Taiwan Epistar chip beads, high brightness, high refresh rate and long service life.
2. The back of the single 8 countdown traffic light is installed with an L-shaped bracket, which is simple and convenient to install.
3. Single 8 countdown traffic light adopts PC shell, ultra-thin design, light weight, novel structure and beautiful appearance.
4. The single 8 countdown traffic lights are quickly assembled using modules, and maintenance and replacement of parts are exceptionally fast.
5. The single 8 countdown traffic light does not need to be connected to another power supply, and can be connected directly from the traffic signal.
6. Single 8 countdown traffic light unique optical system, large viewing angle, uniform chromaticity, long viewing distance.
Single 8 large 400mm led countdown timer traffic light installation method:
Installation method:
1. There is a screw on both ends, unscrew the nut above the screw,
2. Put the flat end of the "L" type bracket on the screw according to the hole position and the clamping slot, and tighten the nut. (as the picture shows)
3. The sun visor is installed on the upper part of the lamp. The long sun visor is on the top of the lamp body and the short is on both sides. Tighten the screws with the corresponding holes.
4. Make two holes on the signal light rod, drill holes according to the signal L-bracket holes, use a suitable screw to pass through the light rod, and put the L-shaped bracket on the screw and fix it with the nut.
Single 8 large 400mm led countdown timerconnection method:
1. Red line-red R (red countdown)
2. Yellow line-yellow R (yellow countdown)
3. Green line-green R (green countdown)
3. Black line-public 220V neutral line
5. Connect to AC220V
6 Connect the other end of the wiring to the signal
In addition to the Single 8 large 400mm led countdown timer traffic lights, We also produces other traffic lights:
