300mm 2 digitals led Traffic Light Countdown Timer
- Payment Type:
- T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- EXW
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | guangdong |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | stock |
| Payment Type: | T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | EXW |
| Certificate: | CE/ROHS |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
300mm 2 digitals Traffic Light Countdown Timer
The basic information of 300mm 2 digitals Traffic Light Countdown Timer:
Product model: WDM-C300-RG
1. Product size: 350*350MM
2. Color of lamp beads: red and green
3. Lamp bead category: Taiwan Epistar chip lamp bead
4. Red wavelength: 620-625NM
5. Green wavelength: 520-525NM (emerald green)
6. Working voltage: DC12V/24V
7. Working temperature: -40℃~65℃
8. Protection level: IP65
9. Light angle: 30°
10. Visible distance: ≥1000M
11. Service life: 100000H
Features of 300mm 2 digitals Traffic Light Countdown Timer:
1. The 300mm 2 digitals Traffic Light Countdown Timer uses Taiwan Epistar chip beads, high brightness, high refresh rate, and long service life.
2. The back of the 300mm 2 digitals Traffic Light Countdown Timer is installed with a hoop, which is simple and convenient to install.
3. The 300mm 2 digitals Traffic Light Countdown Timer adopts ultra-thin design, light weight, novel structure and beautiful appearance.
4.300mm 2 digitals Traffic Light Countdown Timer adopts module quick assembly, maintenance and replacement parts are extremely fast.
5. 300mm 2 digitals Traffic Light Countdown Timer require no additional power supply and can be wired directly from the traffic signal.
6. 300mm 2 digitals Traffic Light Countdown Timer has a variety of installation methods to adapt to different installation environments, construction and installation is extremely simple.
7. The unique optical system of the 300mm 2 digitals Traffic Light Countdown Timer has a large viewing angle, uniform chromaticity, and a long viewing distance.
8. 300mm 2 digitals Traffic Light Countdown Timer have multiple seals, waterproof, dustproof, vibration resistant, low power consumption and long life.

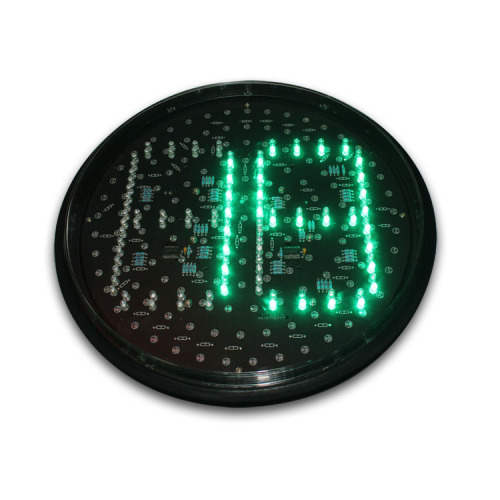

The physical picture of 300mm 2 digitals Traffic Light Countdown Timer:
Wiring method of 300mm 2 digitals Traffic Light Countdown Timer:
1. Connect the signal:
Black is the zero line;
Red is the red countdown;
Green is the green countdown;
Precautions:
1. Which direction to connect to the countdown, the corresponding direction should also be selected when the signal is connected (for example: if the countdown is connected straight, then the direction of the straight line should be selected when the signal is connected.
