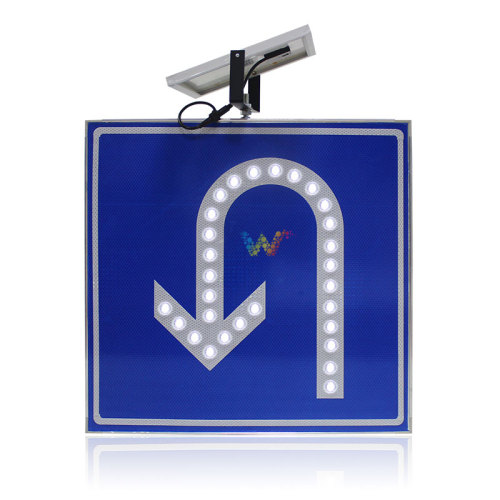

Directional Aluminum Led Solar U-turn traffic sign Board

The working principle of the Directional Aluminum Led Solar U-turn traffic sign Board:
The working principle of the Directional Aluminum Led Solar U-turn traffic sign Board can be simply summarized as: during the day, solar panels absorb sunlight, convert solar energy into electrical energy, and store it in energy storage devices. At night, the electrical energy in the energy storage devices is automatically converted into light energy (through photoelectric Switch control), the outline of the pattern is drawn through the bright light of the LED, and the traffic information is conveyed.

The detailed parameters of the Directional Aluminum Led Solar U-turn traffic sign Board:
1. Product size: 600*600*70MM
2. Lamp bead color: white/Red
3. Number of lamp beads: 36
4. Lamp beads category: Taiwan Epistar chip lamp beads
5. Red wavelength: 620-625NM
6. Solar panel: 8W/18V
7. Battery: 10AH
8. Shell material: aluminum shell
9. Working voltage: 12V
10. Working temperature: -40℃~60℃
11. Working mode: stroboscopic
12. Protection level: IP65
13. Commonly used hoop installation: 76MM hoop

Features of Directional Aluminum Led Solar U-turn traffic sign Board:
1. Directional Aluminum Led Solar U-turn traffic sign Board are mainly used for urban roads, forks, accident-prone sections, etc. in sunny places
2. The Directional Aluminum Led Solar U-turn traffic sign Board uses Taiwan Epistar chip with our independent mold lens, which has longer service life, good stability, high refresh rate, high concentration, and high brightness.
3.Directional Aluminum Led Solar U-turn traffic sign Board The box body adopts self-moulded aluminum plate with reverse hook design. Using inlaid packaging, the packaging is firm. Not only is it beautiful, but it also gives the product a very good level of protection
4. The Directional Aluminum Led Solar U-turn traffic sign Board uses 8W/18V monocrystalline silicon solar panels, which use solar energy to generate electricity, which is energy-saving and environmentally friendly.
5. There is a power switch and a light control switch at the bottom of the Directional Aluminum Led Solar U-turn traffic sign Board.
6. The Directional Aluminum Led Solar U-turn traffic sign Board is installed with a hoop on the back, which is very convenient, firm and easy to disassemble.
7. For the safety of the Directional Aluminum Led Solar U-turn traffic sign Board installation, solid rivets are used on the back of the product. Flat rivets are used on the surface to make the product flat and smooth as a whole.
8. The Directional Aluminum Led Solar U-turn traffic sign Board uses engineering-grade 3M reflective film. 3M reflective film can produce a strong reflective effect under a certain light source. The reflective brightness of 3M reflective film is 6 times that of traditional logos. In the daytime, the logo can appear bright White; at night, it provides reliable security for pedestrians in the dark or night operators.
9. The product size, speed limit sign number, reflective film, lamp bead color and installation method of the Directional Aluminum Led Solar U-turn traffic sign Board can be customized according to the requirements of customers

The installation method of the Directional Aluminum Led Solar U-turn traffic sign Board:
Solar panel installation:
1. Connect the solar waterproof butt joint to the butt joint of the lamp,
2. Tighten the waterproof nut in the line.
3. Put the solar panel into the lamp,
4. Finally, pass the screw through the hole of the solar panel, install the gasket, and then screw the nut.
Hoop installation method for the Directional Aluminum Led Solar U-turn traffic sign Board:
1. Insert the M10 screw through the aluminum slot on the back of the product, and then put the holes at both ends of the 76MM hoop into the screws at both ends, and then screw the nut on.
2. Fix the hoop in the middle of the aluminum trough and tighten the nuts at both ends.
