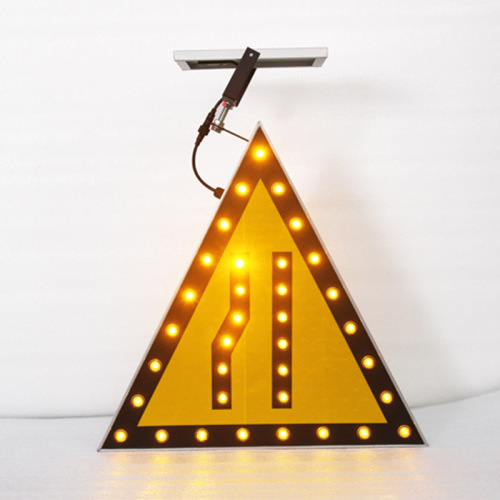

High Reflective 600*600mm Aluminum Solar Traffic Sign Board
- Payment Type:
- T/T, Paypal, Money Gram, Western Union
- Incoterm:
- EXW
- Delivery Time:
- 7 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | guangdong |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | stock |
| Payment Type: | T/T,Paypal,Money Gram,Western Union |
| Incoterm: | EXW |
| Certificate: | CE/ROHS |
| HS Code: | 8530800000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
Features of the High Reflective 600*600mm Aluminum Solar Traffic Sign Board:
1. The High Reflective 600*600mm Aluminum Solar Traffic Sign Board is mainly used for the narrowing of the lane, and is installed in a sunny place

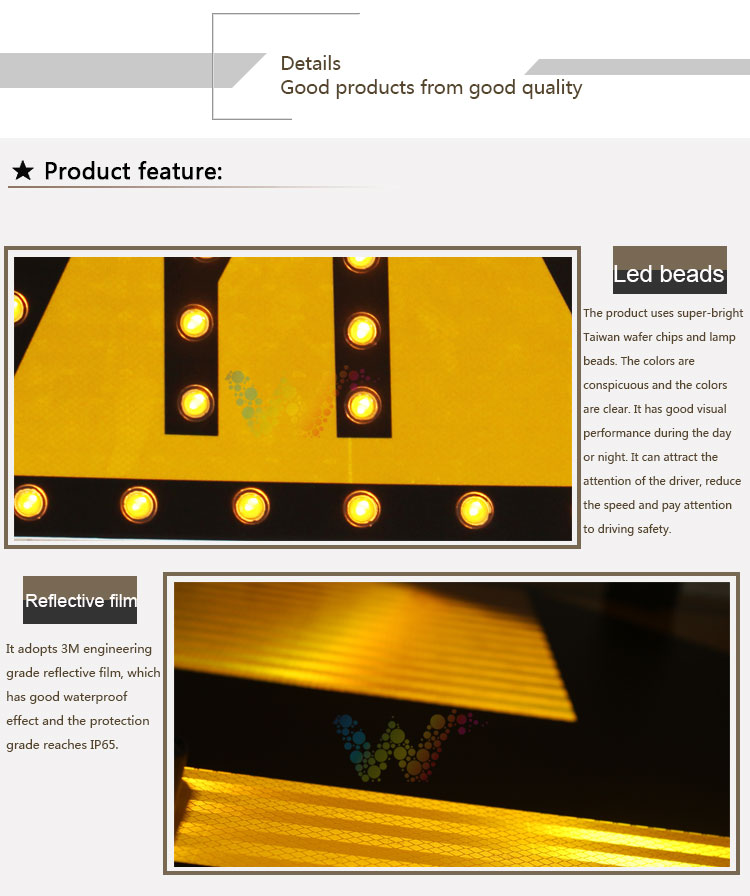

2. The High Reflective 600*600mm Aluminum Solar Traffic Sign Board uses Taiwan Epistar chip with our own mold-opening lens, which has longer service life, good stability, high refresh rate, high concentration, and high brightness.
3. The High Reflective 600*600mm Aluminum Solar Traffic Sign Board box body adopts self-moulded aluminum plate with reverse hook design. Using inlaid packaging, the packaging is firm. Not only is it beautiful, it also gives the product a very good protection level

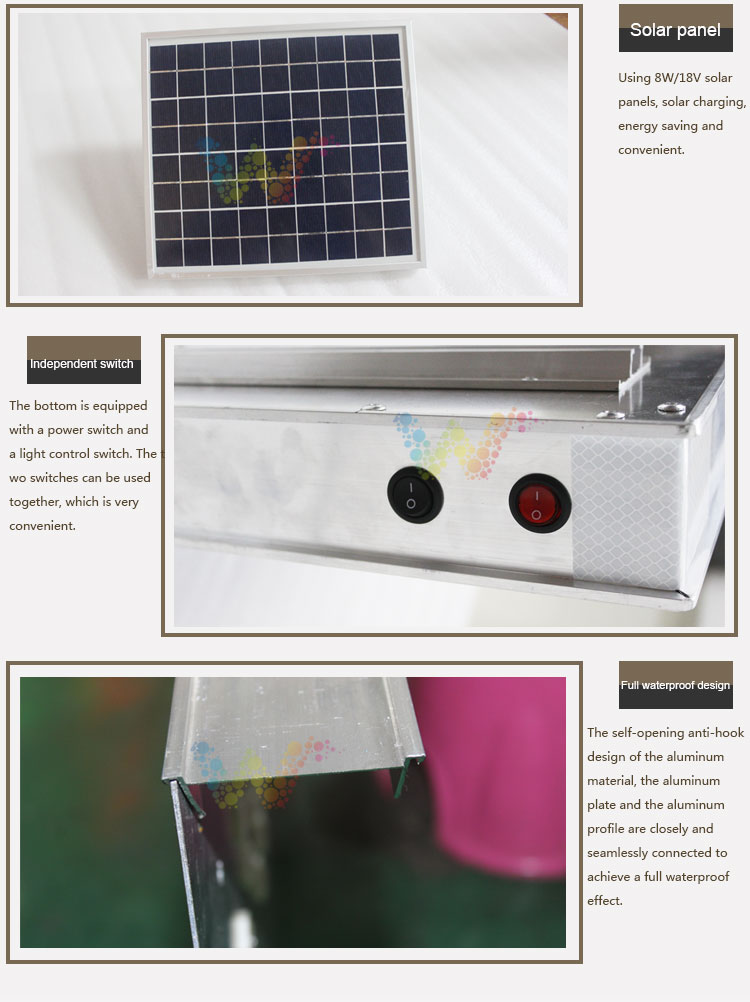

4. The High Reflective 600*600mm Aluminum Solar Traffic Sign Board uses 8W/18V monocrystalline silicon solar panels, which use solar energy to generate electricity, which is energy-saving and environmentally friendly.
5. There is a power switch and a light control switch at the bottom of the High Reflective 600*600mm Aluminum Solar Traffic Sign Board.
6. The High Reflective 600*600mm Aluminum Solar Traffic Sign Board is installed with a hoop on the back, which is very convenient, firm and easy to disassemble.
7. For the safety of the High Reflective 600*600mm Aluminum Solar Traffic Sign Board, solid rivets are used on the back of the product. The surface adopts flat rivets to make the whole product smooth and smooth.
8. The NHigh Reflective 600*600mm Aluminum Solar Traffic Sign Board uses engineering-grade 3M reflective film. 3M reflective film can produce a strong reflective effect under a certain light source. The reflective brightness of 3M reflective film is 6 times that of traditional logos. In the daytime, the logo can be displayed. Bright white; at night, it provides reliable security for pedestrians in the dark or night operators.9. The product size, speed limit sign number, reflective film, lamp bead color and installation method of the High Reflective 600*600mm Aluminum Solar Traffic Sign Board can be customized according to customer requirements
Installation method of the High Reflective 600*600mm Aluminum Solar Traffic Sign Board:
Solar panel installation:1. Connect the solar waterproof butt joint with the butt joint of the lamp,
2. Tighten the waterproof nut in the line.
3. Put the solar panel into the lamp,
4. Finally, pass the screw through the hole of the solar panel, install the gasket, and then screw the nut.

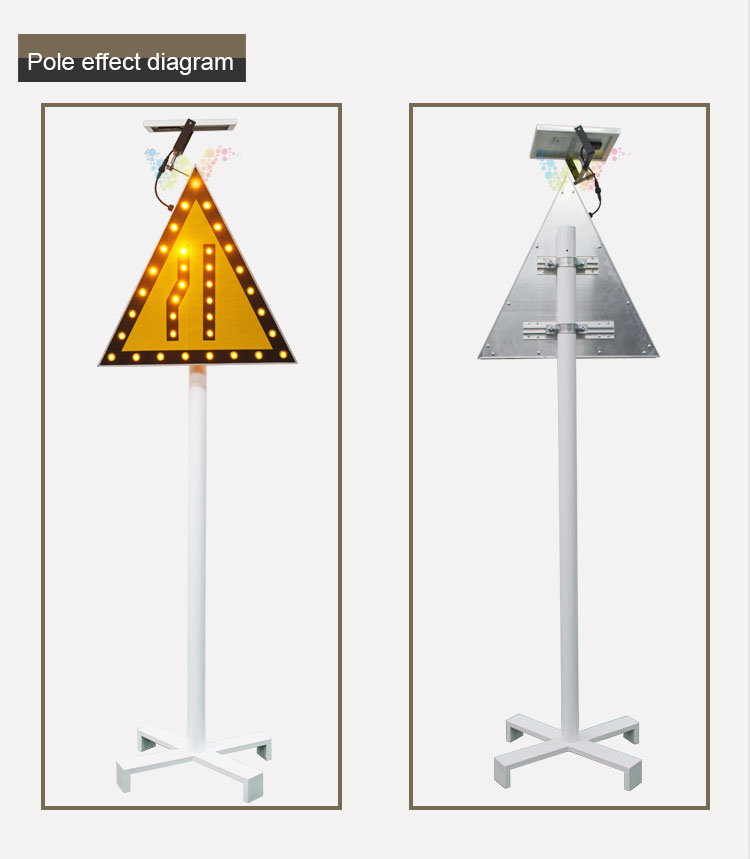

Hoop installation method:
1. Insert the M10 screw through the aluminum slot on the back of the product, and then put the holes at both ends of the 76MM hoop into the screws at both ends, and then screw the nut on.
2. Fix the hoop in the middle of the aluminum trough and tighten the nuts at both ends.
Detailed parameters of the High Reflective 600*600mm Aluminum Solar Traffic Sign Board:
1. Product size: 600*600*70MM
2. Lamp bead color: yellow
3. Number of lamp beads: 35
4. Lamp beads category: Taiwan Epistar chip lamp beads
5. Yellow wavelength: 590-595NM
6. Solar panel: 8W/18V
7. Battery: 5AH
8. Shell material: aluminum shell
9. Working voltage: 12V
10. Working temperature: -40℃~60℃
11. Working mode: stroboscopic
12. Protection level: IP65
13. Commonly used hoop installation: 76MM hoop
The working principle of the High Reflective 600*600mm Aluminum Solar Traffic Sign Board:
The working principle of the Narrowing on the right Solar Led Warning sign can be briefly summarized as: during the day, solar panels absorb sunlight, convert solar energy into electrical energy, and store it in energy storage devices. At night, the electrical energy in the energy storage devices is automatically converted into light energy ( Controlled by a photoelectric switch), the outline of the pattern is drawn through the bright light of the LED to convey traffic information.
