Car Parking Management System led traffic light 100mm

what is the Car Parking Management System led traffic light 100mm:
What we usually see is basically type 300, type 400 and so on. Type 100 traffic light is a small traffic light. It has a very special purpose. In foreign countries, it is mainly used for people to see, mainly for installation. On both sides of the crosswalk, there are 100 rows of red, yellow and green lights, and 100 type traffic lights, which is very convenient for people to see, because there are no pedestrian lights in foreign countries, and they all use this kind of small lights. Instead of traffic lights, this small traffic light with 100 lines was created.
However, it is mainly used in the teaching of traffic rules in kindergartens and elementary schools. It can let children understand some traffic rules as soon as possible. Through the demonstration of real objects, they can simulate the scene of crossing the road and let the children cross the road. The importance of time safety.

Characteristics of Car Parking Management System led traffic light 100mm:
1. The red yellow green remote control led traffic light use Taiwan wafer chip beads, high brightness, high refresh rate, and long service life.
2. The outlet of the PC housing red yellow green remote control led traffic light is designed with outlet holes, which not only facilitates the outlet, but also has a good waterproof effect.
3. The sunshade cover of the 100mm full-panel red and green lights is made of PC material, which has good waterproof and dustproof effect and simple installation.
4. The 100mm full-panel red and green traffic lights are installed with an L-shaped bracket, which is very convenient for assembly.

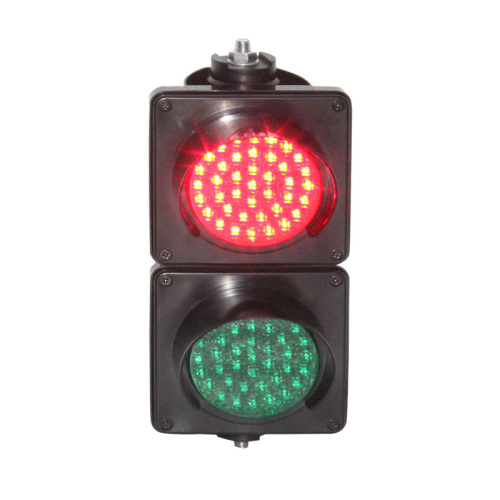

Three, the physical picture of the 100mm led traffic lights with remote control:

Installation method of Car Parking Management System led traffic light 100mm:
Installation method: horizontal installation
(1) A screw is left at both ends, unscrew the nut above the screw,
(2) Put the flat end of the "L" bracket on the screw according to the hole position and the clamping slot, and tighten the nut. (as the picture shows)
(3) The sun visor is installed on the upper part of the lamp, put the sun visor on the lamp, and tighten the screws to the corresponding holes.
(4) Drill two holes on the signal light pole, drill holes according to the signal L-bracket position, use a suitable screw to pass through the light pole, and put the L-shaped bracket on the screw and fix it with the nut. (as the picture shows)
Installation method: vertical installation
The steps of vertical installation and horizontal installation are the same, just put it upright, pay attention to 2 points:
1. The sun visor is on the upper part of the lamp
2. The outlet hole is facing down (as shown in the figure):

The connection mode of Car Parking Management System led traffic light 100mm:
1. Wiring DC12V/24V:
(1) Red and black wire-red light negative pole;
(2) Red wire-positive electrode;
(3) Green wire-negative light of green light;
2. Connect to 220V:
(1) Black line-public zero line;
(2) Red line-red light fire line;
(3) Green line-green light fire line;
6. Details of accessories for 200mm full-panel traffic signal lights:
(1) Lamps: 1 set
(2) Sunshade: 2
(3) L-shaped bracket: 2
(4) Instructions: 1 copy
(5) Qualification certificate: 1 copy
(6) M3 screws: 8
7. Packing diagram of 200mm full-plate red and green traffic lights:
