Parking lots 100mm traffic light signal

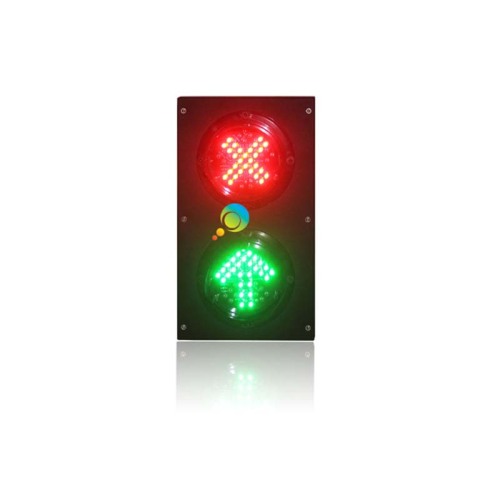

Parking lots 100mm red cross green arrow traffic light signal

The connection mode of the Parking lots 100mm red cross green arrow traffic light signal:
1. Wiring DC12V/24V:
(1) Red and black wire-red light negative pole;
(2) Red wire-positive electrode;
(3) Green wire-negative light of green light;
2. Connect to 220V:
(1) Black line-public zero line;
(2) Red line-red light fire line;
(3) Green line-green light fire line;
6. Details of accessories for 200mm full-panel traffic signal lights:
(1) Lamps: 1 set
(2) Sunshade: 2
(3) L-shaped bracket: 2
(4) Instructions: 1 copy
(5) Qualification certificate: 1 copy
(6) M3 screws: 8
7. Packing diagram of small cold-rooled plate 100mm traffic signal light:

1. Basic parameters of the Parking lots 100mm red cross green arrow traffic light signal:
Product model: WDM-JD100-2-RG-T
1. Product size: 300*150*85MM
2. Lamp bead color: red  green
3. Lamp beads category: Taiwan Epistar chip lamp beads
4. Luminous diameter: 100MM
5. Number of lamp beads: 28 for red and 32pcs for green
6. Red wavelength: 620-625NM
7. Green wavelength: 500-505NM (blue-green)
8. Installation method: horizontal or vertical
9. Shell material: cold-plate
10. Working voltage: AC85V-265V a small amount of DC12V/24V
11. Working temperature: -40℃~65℃
12. Protection level: IP53
13. Light angle: 30°
14. Visible distance: ≥1000M
15. Service life: 100000H
16. Rated power: 8W each for red and green

Characteristics of the Parking lots 100mm red cross green arrow traffic light signal:
1. The red yellow green remote control led traffic light use Taiwan wafer chip beads, high brightness, high refresh rate, and long service life.
2. The outlet of the PC housing red yellow green remote control led traffic light is designed with outlet holes, which not only facilitates the outlet, but also has a good waterproof effect.
3. The sunshade cover of the 100mm full-panel red and green lights is made of PC material, which has good waterproof and dustproof effect and simple installation.
4. The 100mm full-panel red and green traffic lights are installed with an L-shaped bracket, which is very convenient for assembly.
Three, the physical picture of the 100mm led traffic lights with remote control:

Installation method of the Parking lots 100mm red cross green arrow traffic light signal:
Installation method: horizontal installation
(1) A screw is left at both ends, unscrew the nut above the screw,
(2) Put the flat end of the "L" bracket on the screw according to the hole position and the clamping slot, and tighten the nut. (as the picture shows)
(3) The sun visor is installed on the upper part of the lamp, put the sun visor on the lamp, and tighten the screws to the corresponding holes.
(4) Drill two holes on the signal light pole, drill holes according to the signal L-bracket position, use a suitable screw to pass through the light pole, and put the L-shaped bracket on the screw and fix it with the nut. (as the picture shows)
Installation method: vertical installation
The steps of vertical installation and horizontal installation are the same, just put it upright, pay attention to 2 points:
1. The sun visor is on the upper part of the lamp
2. The outlet hole is facing down (as shown in the figure):

In addition to the Parking lots 100mm red cross green arrow traffic light signal, Shenzhen Wide Way Optoelectronics Co., Ltd also produces other types of traffic lights:
1.100MM traffic lights;
2.led traffic signal controller;
3.solar flashing warning light.

4.pedestrian traffic light
