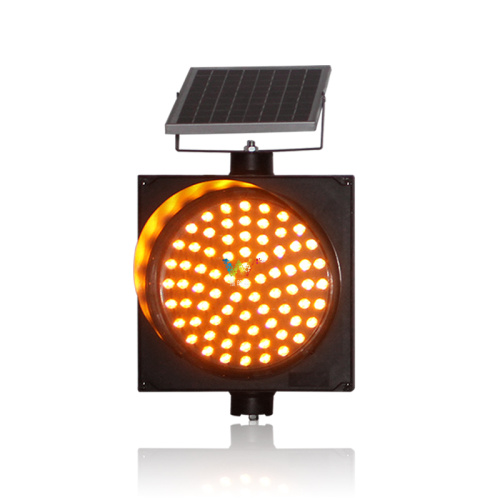

300mm yellow blinking solar power warning traffic light

300mm yellow blinking solar power warning traffic light
The 300mm yellow blinking solar power warning traffic light shell is made of polycarbonate (PC) by one-time injection molding, and the seal is made of silicone rubber seals, which are dust-proof, waterproof, flame-retardant, and anti-aging. The service life of the lamp shell is ≥9 years; the solar yellow flashing warning light uses solar cells to provide energy. No need to use 200V power supply, installation is simple and convenient, labor and time saving, standing pole sees light; the solar cell module quality assurance period is 15 years, the battery power generation system has the characteristics of wind resistance, hail resistance, and UV radiation resistance, and the system can be minus 39 Work normally in an environment of ℃ to above 80℃, not affected by the geographical environment;

Technical Solution for the 300mm yellow blinking solar power warning traffic light
1. The 300mm yellow blinking solar power warning traffic light beads are made of condensing LEDs, and its LEDs are all using 5MM round head lamp beads, because the round head lamp beads belong to the condensing type LED, and the round head lamp beads are on the top The colloid is relatively high, and the colloid forms a light-gathering effect. This LED is basically used for traffic signal indicator lights. Our solar yellow flashing lights are also made of this LED, as shown in the figure.
2. The shell of the 300mm yellow blinking solar power warning traffic light is an environmentally friendly plastic shell, which is characterized by good chemical stability, good corrosion resistance to general acids and alkalis; good electrical insulation, which is a poor conductor and safe to use; It has good waterproof performance and is durable.

3. Reflective lens is installed on the 300mm yellow blinking solar power warning traffic light board. Because solar yellow flashing lights are powered by solar energy, it is necessary to do more than supply to ensure that they work properly. This is the commonality of solar products. In order to make the brightness of the entire solar yellow flash lamp higher under the same current situation, a retro-reflective lens must be installed. Under the same current situation, a retro-reflective lens should be installed to improve the brightness. Times!
4. Solar panel, 300mm yellow blinking solar power warning traffic light solar panel is made of single crystal silicon material, which is a relatively active non-metallic element, with high purity and high efficiency of solar energy conversion rate, and most of the use of amorphous silicon, polycrystalline silicon Compared with the product, the monocrystalline silicon solar panel has excellent endurance and high photoelectric conversion rate, which can make the yellow flash lamp work longer in continuous rainy weather.

Features of 300mm yellow blinking solar power warning traffic light:
1. Green energy, economic and environmental protection, no harmful substances, no pollutants.
2. The LED adopts Taiwan Epistar chips, with a service life of ≥100000 hours, high brightness, unique optical system, uniform chromaticity, good warning effect, and slow light attenuation.
3. Low power consumption, large viewing angle, super high brightness, long viewing distance and long working time.
4. Sturdy and durable. Stable and reliable, high protection level. Impact resistance, aging resistance, corrosion resistance.
5. Waterproof. Easy to install.
6. Comply with GB/14887-2003 and relevant international standards

Installation of 300mm yellow blinking solar power warning traffic light:
This product should be installed vertically, pay attention to the sun hat on the upper part of the lamp and the outlet hole facing down. The installation steps are as follows:
1. There is a screw on both ends, unscrew the nut above the screw,
2. Put the flat end of the "L" type bracket on the screw according to the hole position and the slot, then put the bracket of the solar panel into the screw on the upper end of the lamp, put the gasket and nut, and tighten the nut. Then, the butt joint of the solar panel and the butt joint of the lamp can be docked. (as the picture shows)
3. The sun visor is installed on the upper part of the lamp. Fold the 3-corner aluminum plate into a circular arc shape, put it on the lamp, and tighten it with the screw to the corresponding hole position. (as the picture shows)
4. Make two holes in the signal light pole, drill holes according to the signal L-bracket position, use a suitable screw to pass through the light pole, and put the L-shaped bracket on the screw and fix it with the nut. (as the picture shows)

300mm yellow blinking solar power warning traffic light wiring instructions
The solar yellow flashing lights can be set to night mode and 24-hour mode. Two switches are used to control the entire solar yellow flashing light. One is that the main switch controls the entire light to not work or turn on the work. The other switch is the solar light control mode. The red switch is the main switch, and the black switch is the light control switch. The light control switch refers to whether you choose 12-hour mode or 24-hour mode.

Field application for the 300mm yellow blinking solar power warning traffic light
