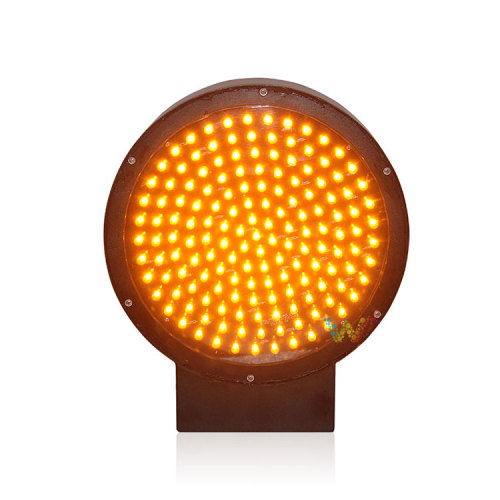

300mm iron shell round highway traffic fog lamp
- Payment Type:
- T/T, D/P, Paypal, Money Gram, Western Union
- Incoterm:
- EXW
- Delivery Time:
- 5 Days
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | guangdong |
|---|---|
| Productivity: | 50000 |
| Supply Ability: | stock |
| Payment Type: | T/T,D/P,Paypal,Money Gram,Western Union |
| Incoterm: | EXW |
| Certificate: | CE/ROHS |
| HS Code: | 8530800000 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen |
Product Description
Product Description
300mm iron shell round highway traffic fog lamp
Installation method of 300mm iron shell round highway traffic fog lamp:
Put the fog lamp on the pole, the wire needs to pass through the pole, and align the holes on the lamp with the pole; then screw the screw through the hole on the pole and screw it on the bottom of the lamp to prevent shaking damage For lamps, be sure to tighten the screws. There is a flange at the bottom of the pole, and there are holes on it. Use screws to fix the pole on the ground or on a safety island.
The wiring method of 300mm iron shell round highway traffic fog lamp:
Connect to AC85-265V voltage: black wire neutral wire, red wire live wire.
Connect DC12V/24V voltage:Black negative pole, red positive pole.
Pass the power cord of the lamp out of the pole, and then connect it to the corresponding power source, that is, if it is connected to 220V voltage, then it is connected to 220V voltage, if it is connected to12V/24V voltage.
The parameter details of 300mm iron shell round highway traffic fog lamp:
1. Product size: 400*330*100M
2. Luminous diameter: 300MM
3. Number of lamp beads: 156 yellow
4. Lamp beads category: Taiwan Epistar chip lamp beads
5. Yellow wavelength: 590-595NM
6. Service life: 100000H
7. Shell material: electrostatic spraying, sheet metal chassis
8. Working temperature: -40℃-65℃
9. Protection level: IP65
10. Working voltage: AC85V-265V, a small amount of DC12V/24V
11. Rated power: 15W
12. Visual distance: ≥1000M
Features of 300mm iron shell round highway traffic fog lamp:
1. The 300mm iron shell round highway traffic fog lamp adopts Taiwan Epistar chip lamp beads, high brightness, high refresh rate and long service life.
2. The bottom of the 300mm iron shell round highway traffic fog lamp is designed with an outlet hole, which is not only convenient for outlet, but also has a good waterproof effect.
3. The 300mm iron shell round highway traffic fog lamp adopts an integrated box body, which makes the product have a better waterproof effect
4. The back of the 300mm iron shell round highway traffic fog lamp is equipped with a key switch, which facilitates the inspection and maintenance of the product.
In addition to 300mm iron shell round highway traffic fog lamp, Shenzhen VDM Optoelectronics Co., Ltd. also produces the following other types of fog lamps;
Led Pedestrian Traffic Signal Light
Solar Led Traffic Warning Light
Led Traffic Warning Light
125mm Led Traffic Signal Light
125mm Mini Traffic Light
Customized Traffic Signal Light
Installation method of 300mm iron shell round highway traffic fog lamp:
Put the fog lamp on the pole, the wire needs to pass through the pole, and align the holes on the lamp with the pole; then screw the screw through the hole on the pole and screw it on the bottom of the lamp to prevent shaking damage For lamps, be sure to tighten the screws. There is a flange at the bottom of the pole, and there are holes on it. Use screws to fix the pole on the ground or on a safety island.
The wiring method of 300mm iron shell round highway traffic fog lamp:
Connect to AC85-265V voltage: black wire neutral wire, red wire live wire.
Connect DC12V/24V voltage:Black negative pole, red positive pole.
Pass the power cord of the lamp out of the pole, and then connect it to the corresponding power source, that is, if it is connected to 220V voltage, then it is connected to 220V voltage, if it is connected to12V/24V voltage.
The parameter details of 300mm iron shell round highway traffic fog lamp:
1. Product size: 400*330*100M
2. Luminous diameter: 300MM
3. Number of lamp beads: 156 yellow
4. Lamp beads category: Taiwan Epistar chip lamp beads
5. Yellow wavelength: 590-595NM
6. Service life: 100000H
7. Shell material: electrostatic spraying, sheet metal chassis
8. Working temperature: -40℃-65℃
9. Protection level: IP65
10. Working voltage: AC85V-265V, a small amount of DC12V/24V
11. Rated power: 15W
12. Visual distance: ≥1000M
Features of 300mm iron shell round highway traffic fog lamp:
1. The 300mm iron shell round highway traffic fog lamp adopts Taiwan Epistar chip lamp beads, high brightness, high refresh rate and long service life.
2. The bottom of the 300mm iron shell round highway traffic fog lamp is designed with an outlet hole, which is not only convenient for outlet, but also has a good waterproof effect.
3. The 300mm iron shell round highway traffic fog lamp adopts an integrated box body, which makes the product have a better waterproof effect
4. The back of the 300mm iron shell round highway traffic fog lamp is equipped with a key switch, which facilitates the inspection and maintenance of the product.
In addition to 300mm iron shell round highway traffic fog lamp, Shenzhen VDM Optoelectronics Co., Ltd. also produces the following other types of fog lamps;
Led Pedestrian Traffic Signal Light
Solar Led Traffic Warning Light
Led Traffic Warning Light
125mm Led Traffic Signal Light
125mm Mini Traffic Light
Customized Traffic Signal Light
